From One Bag to One Pallet.
Integrated packaging systems combining primary packaging, product handling, inspection, secondary packaging and end-of-line automation.
INTEGRATED PACKAGING SYSTEMS
Each packaging line is engineered around your product, package format, target output and factory layout.
VFFS · Premade Pouch · Sachet · Cartoning
Feeding · Conveying · Sorting · Counting
Checkweighing · Metal Detection · Vision · X-ray
Cartoning · Case Packing · Case Sealing
Conveying · Palletizing · System Integration
PACKAGING LINE CONFIGURATIONS
Complete packaging lines can combine primary packaging, product transfer, conveying and downstream equipment according to the required production flow.
01

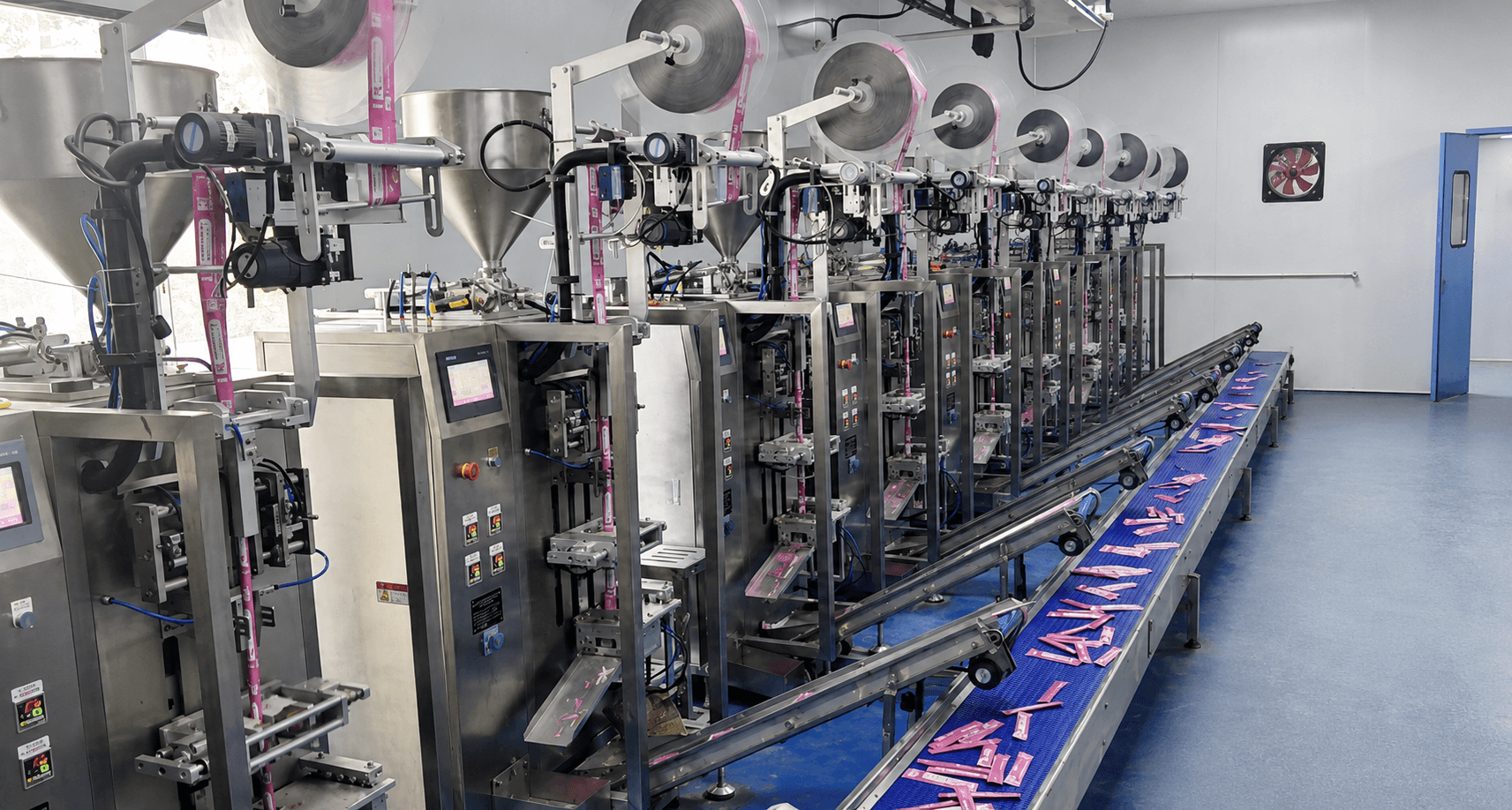

Multiple packaging units working with integrated product discharge and transfer equipment to keep the line connected from packaging through conveying.
02

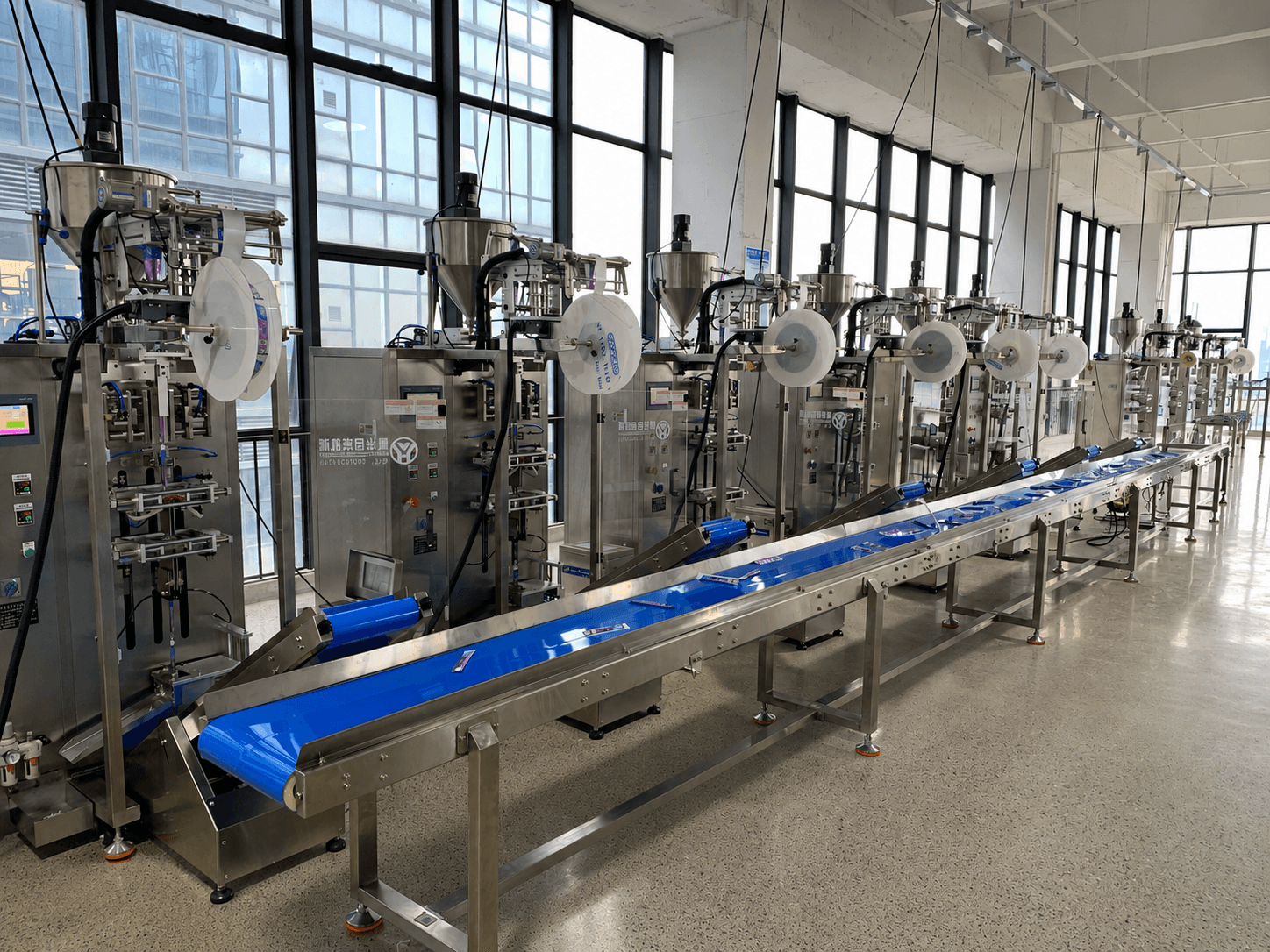

Coordinated packaging equipment connected through product transfer and conveyor integration for a clear downstream connection path.
HOW A COMPLETE PACKAGING LINE WORKS
From the finished primary package, the line continues through product handling, inspection, secondary packaging and end-of-line automation as one connected system.
01

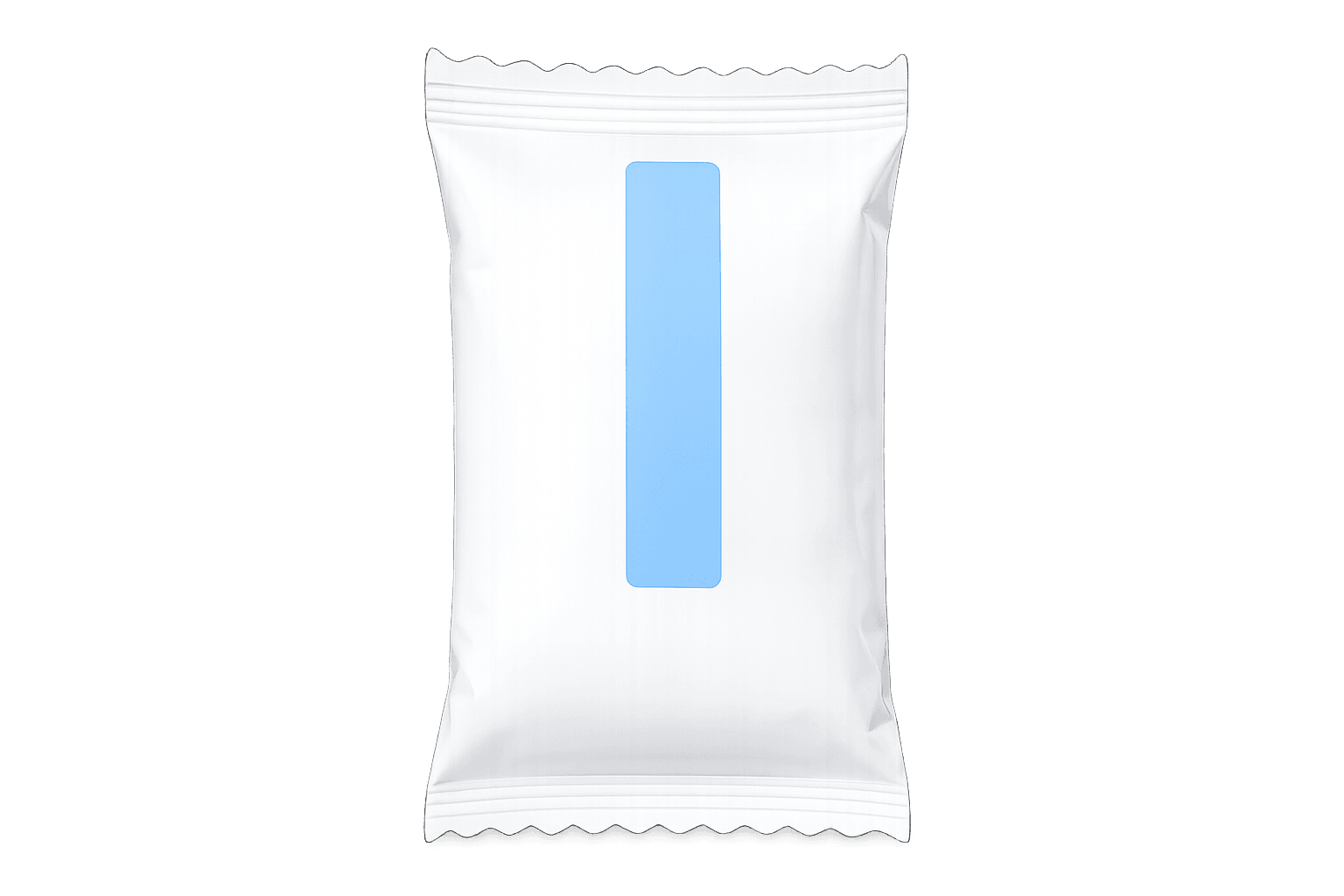

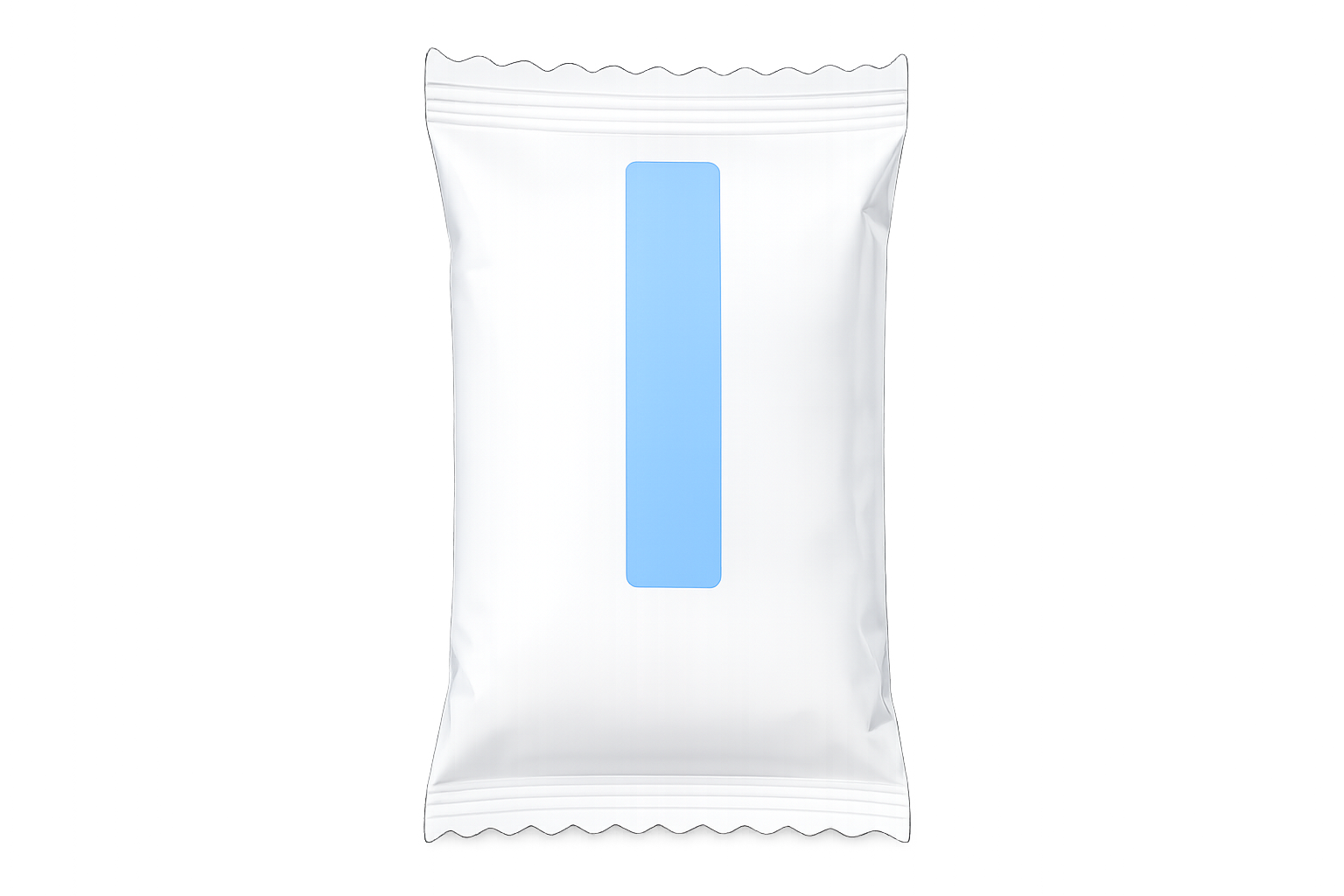

Product is filled, sealed and cut into a finished pouch — then enters the end-of-line automation system.
Stable transport keeps every finished pouch moving at the right speed through the line.
Randomly received packages are automatically aligned to the required direction and orientation — a key YUHUA capability.
Custom counting, grouping and buffering are configured for each product and carton requirement.
Each counted group is automatically loaded into a carton with stable and continuous operation.
Cartons can continue into automatic case packing when higher automation is required.
Optional palletizing completes the line for automated handling and warehouse transfer.
THE COMPLETE PICTURE
Every module is configured to work together according to your product, output and factory requirements — from one bag to one pallet.
ENGINEERING & INTEGRATION
A complete packaging line depends on how individual machines are connected, coordinated and implemented as one production system.
Line configuration based on available factory space, workflow and access.
Coordination of individual machines as part of one packaging system.
Coordination between upstream and downstream equipment for stable production flow.
Conveying, buffering and transfer between connected equipment.

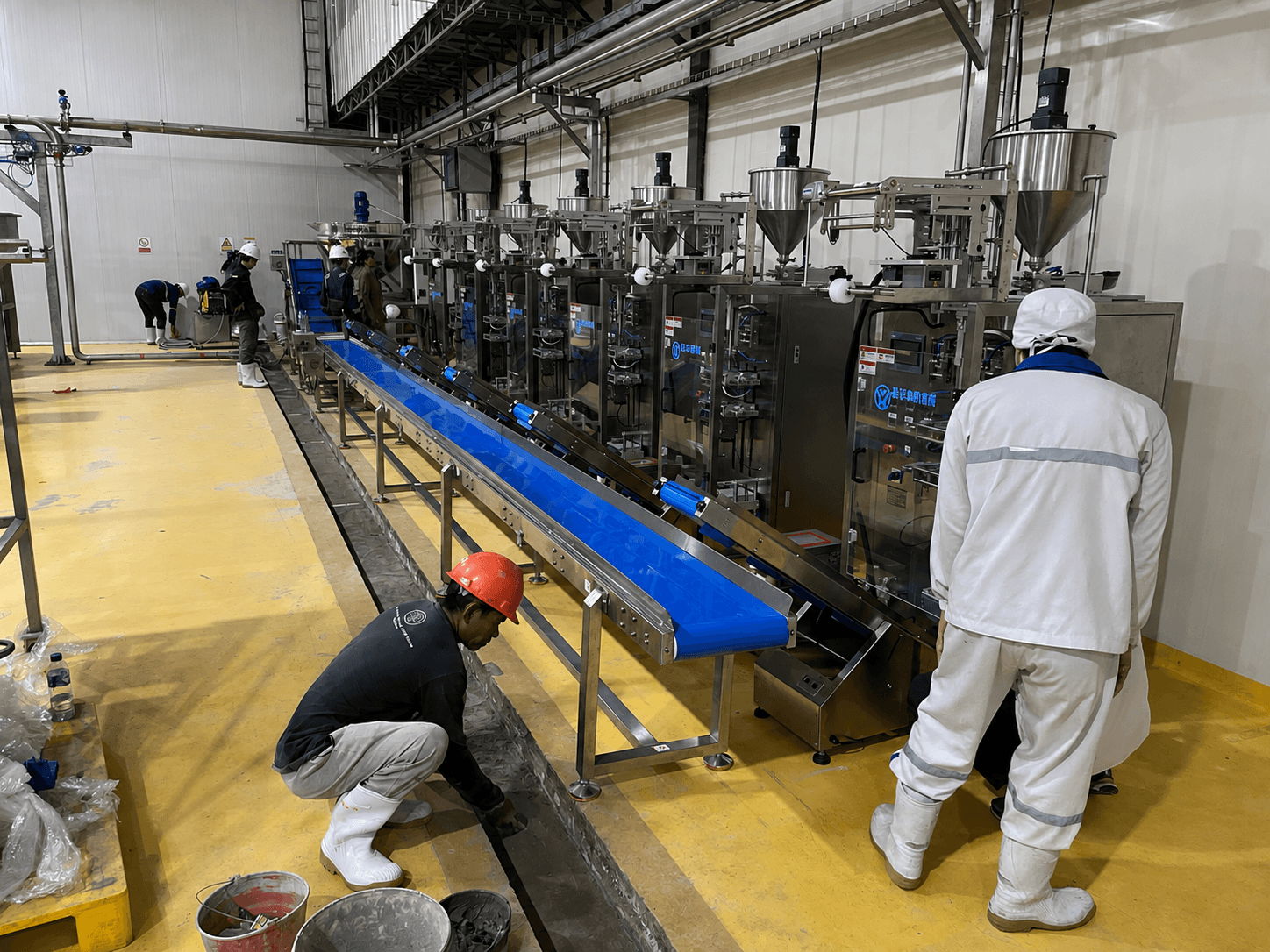

On-site installation, line setup and commissioning support where required.
Operator access, guarding considerations and provision for future upgrades.
PROJECT REQUIREMENTS
The right line starts with a clear understanding of your product, package, output and site requirements.
Powder, granule, liquid, solid, etc.
Bag, pouch, sachet, carton, case, etc.
Required bags/min, cartons/min or cases/min.
From primary packaging through complete end-of-line automation.
Available floor space, direction, access and site constraints.
Checkweighing, metal detection, vision, X-ray, etc.
PACKAGING LINE FAQ
Tell us about your product, bag size, counting requirement, carton format and target output. Our team will help you configure the right line.
