MACHINE FAMILY

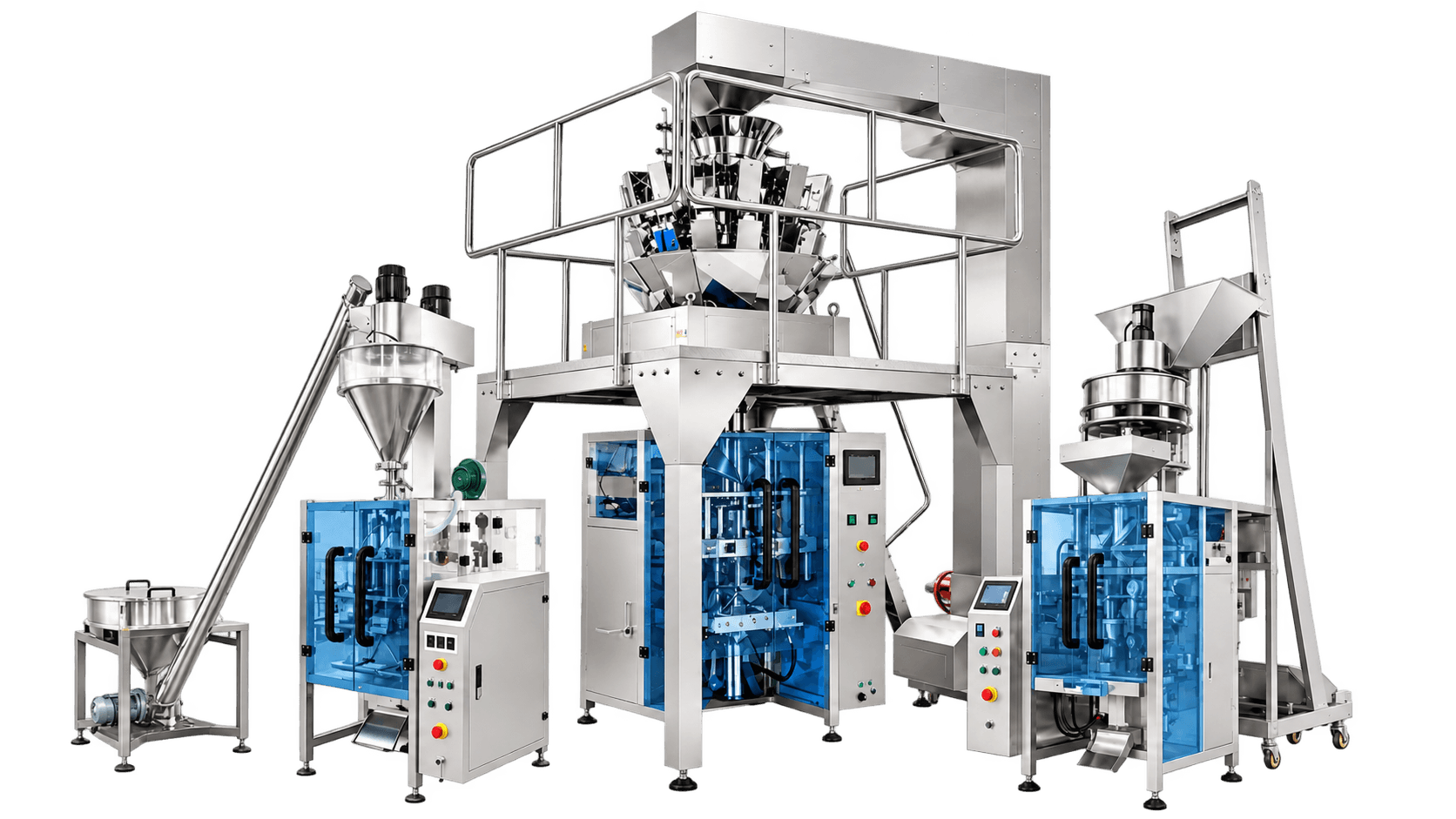

VFFS Machines

Automatic vertical form fill seal machines for packaging powders, granules, liquids and solid products into flexible bags.

Suitable Applications

VFFS Machines are engineered for a wide range of products — from free-flowing granules to fine powders and everything in between.

Snacks

Pet Food

Coffee

Candy

Nuts

Biscuits

Frozen Food

Paste

Hardware

Powder

Granule

Liquid

Compatible Package Formats

Select the bag style that fits your brand and product requirements. Each format is available across our full machine range.

Pillow Bag

The most common large-VFFS bag format, with top and bottom seals and a longitudinal back seal. Suitable for a wide range of granular and solid products.

Four-Side Seal

Flat pouch sealed on all four sides for clean presentation and secure packaging, available on configured YH-520 / YH-720 systems.

HOW IT WORKS

How VFFS Packaging Works

A vertical form fill seal machine forms flexible packaging film into a bag, fills the product through the selected dosing system, then seals and cuts each package in one continuous automated packaging process.

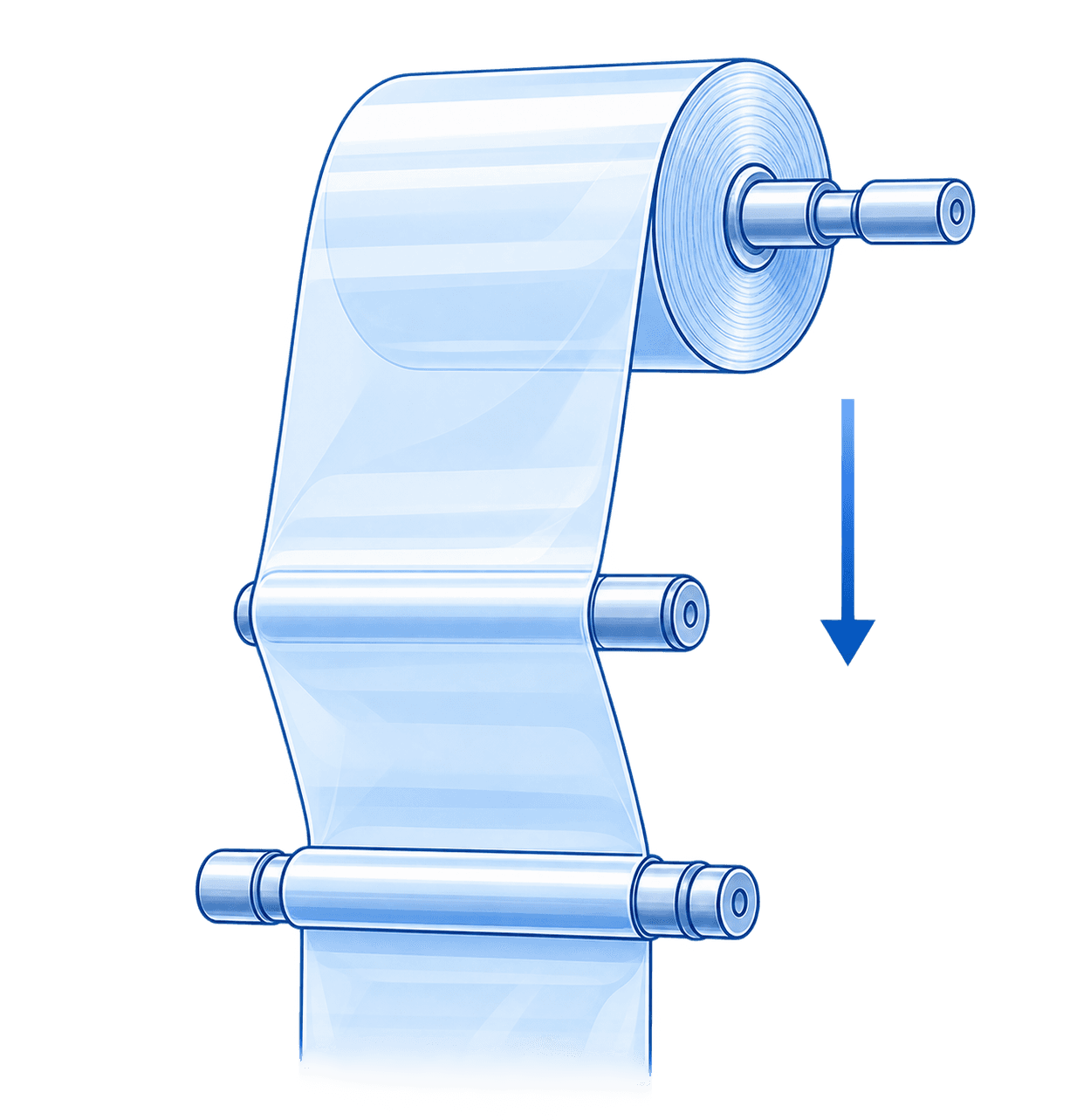

Film Feeding

Packaging film is continuously fed from a roll into the vertical forming system.

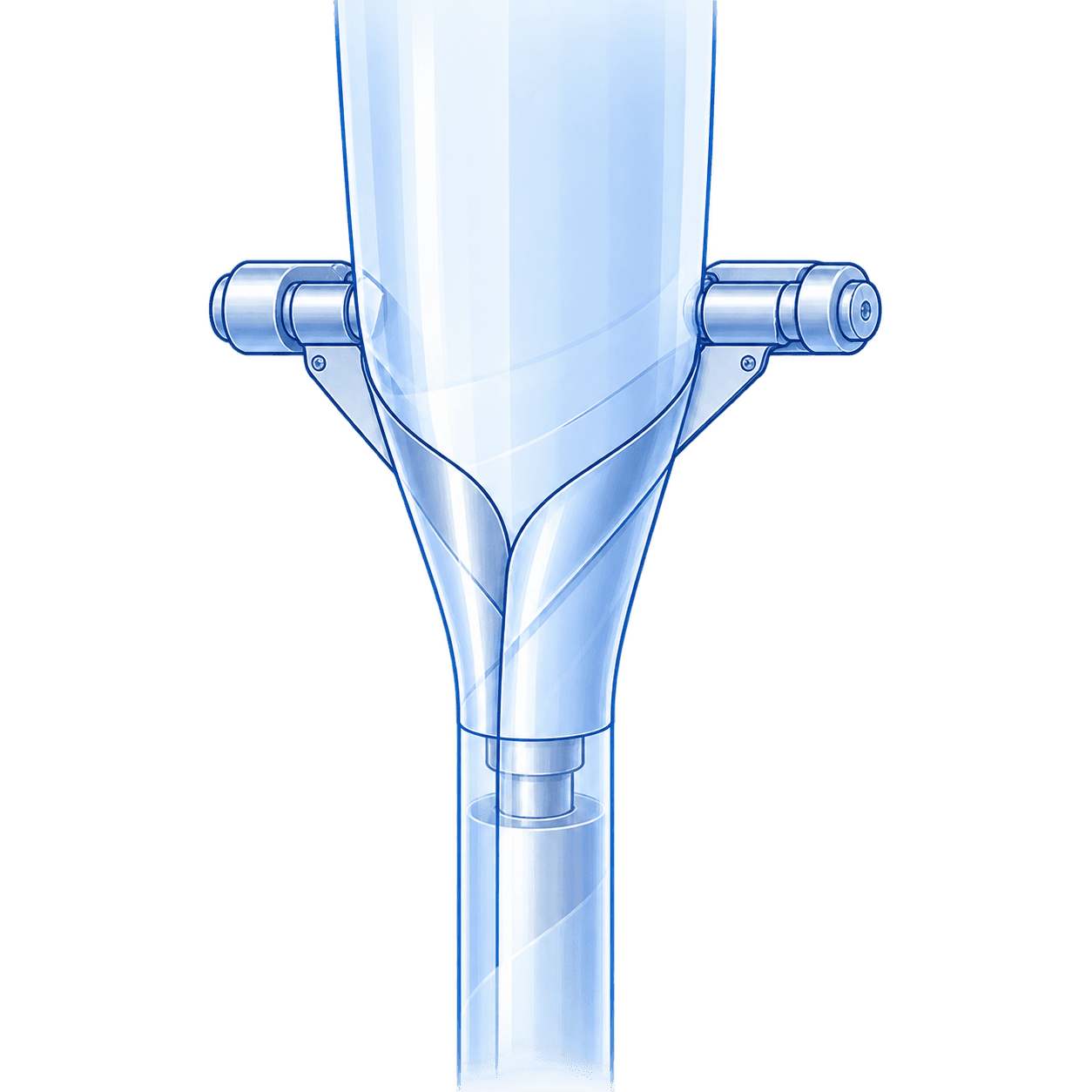

VFFS packaging film forming around the forming tube

Bag Forming

The film is wrapped around a forming tube and shaped into a vertical bag.

Product Filling

Powders, granules, liquids or solid products are dosed into the formed bag through the selected filling system.

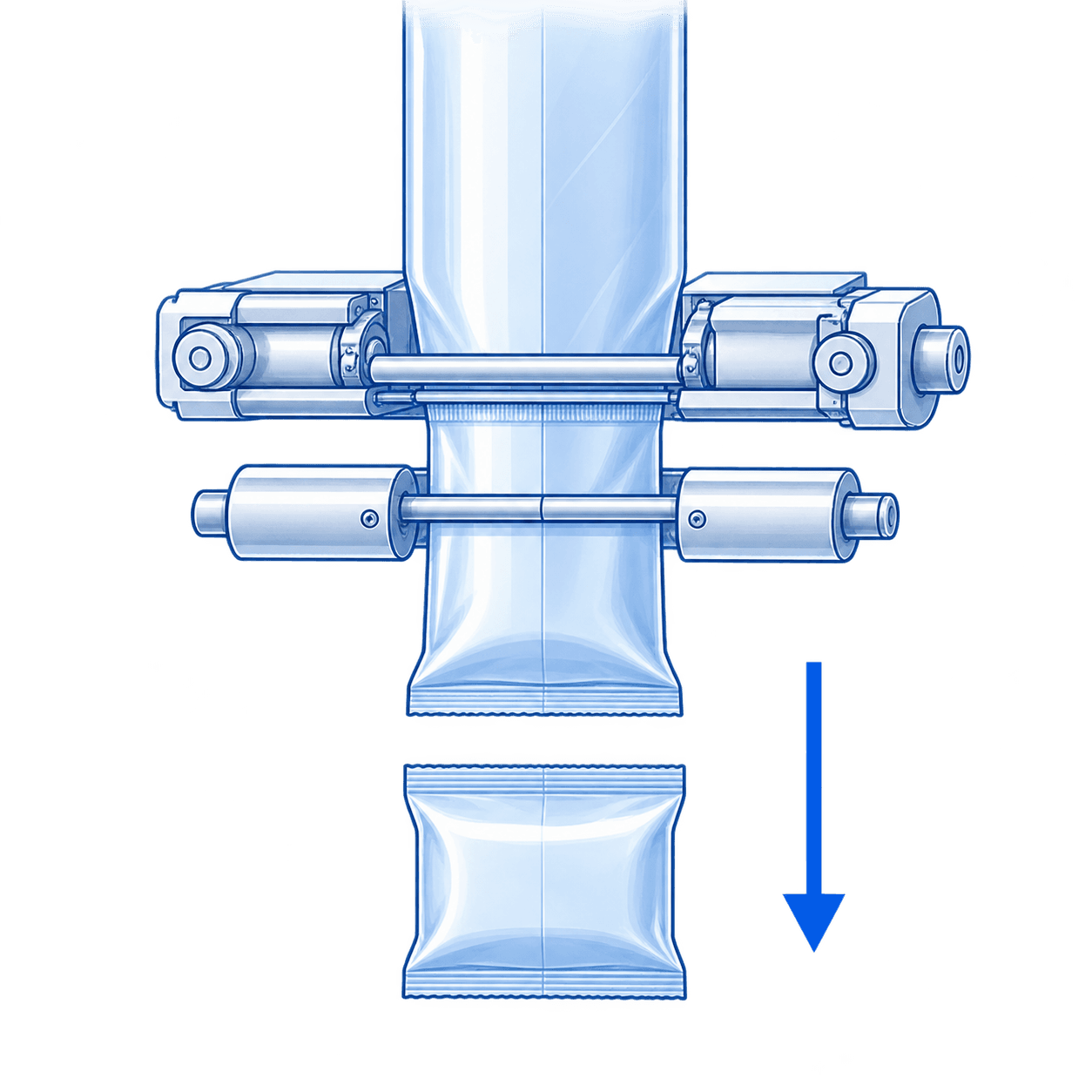

Sealing & Cutting

The bag is longitudinally and horizontally sealed, then cut into individual finished packs.

MACHINE SELECTION

How to Choose the Right VFFS Machine

Choosing the right VFFS machine depends on your product characteristics, package size, required filling system and target packaging speed. These factors help determine the appropriate machine size and configuration for your production needs.

Product Type

Powders, granules, liquids, pastes and solid products require different feeding and filling methods.

Package Size

Bag width and length determine which VFFS machine frame and film size are suitable.

Filling System

Select an auger filler, multihead weigher, volumetric cup filler or liquid pump according to the product characteristics.

VFFS target packaging speed illustration

Target Speed

Required output and package size help determine the appropriate machine configuration.

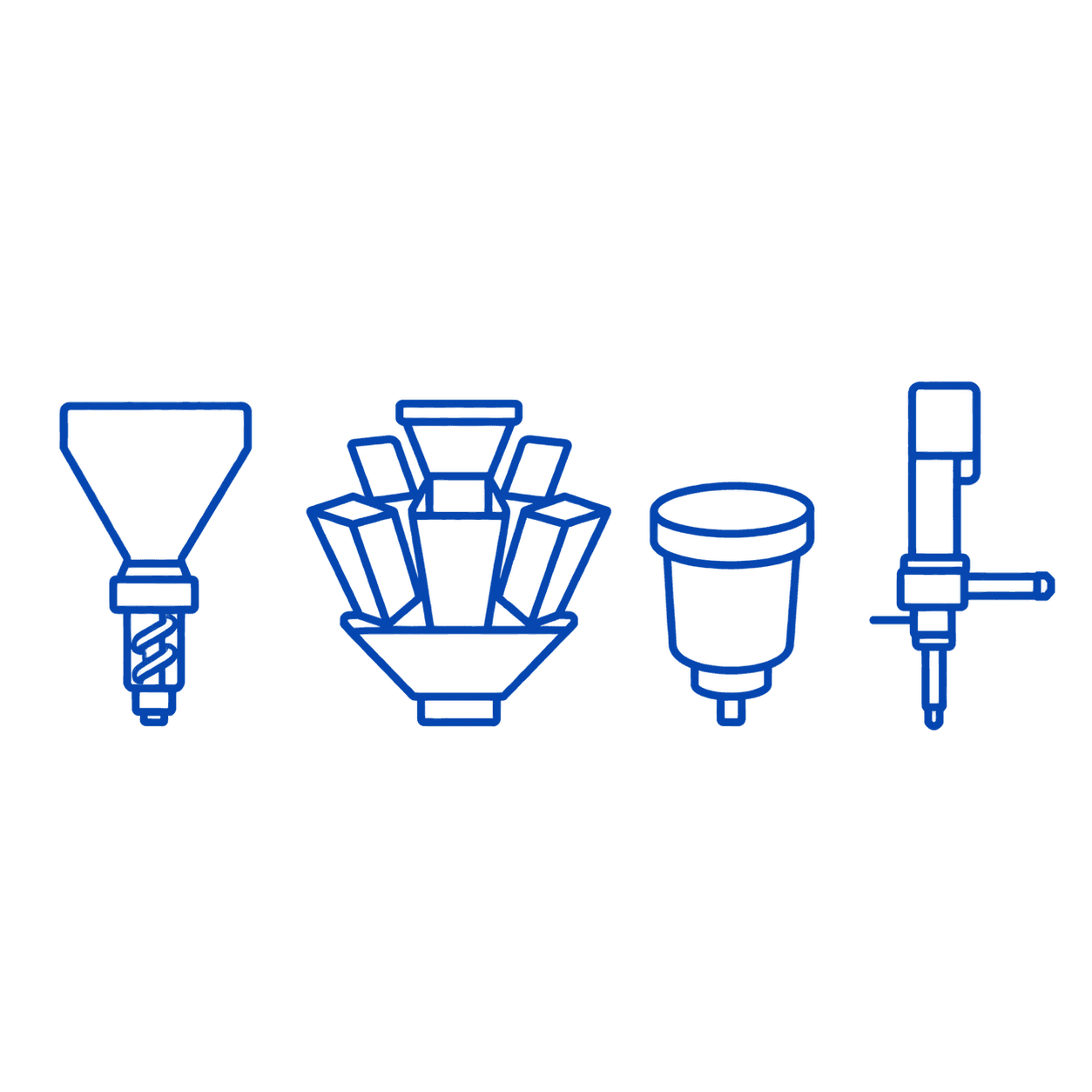

Filling System Options

Different products require different dosing and filling systems. Choose the appropriate filling solution according to product characteristics and packaging requirements.

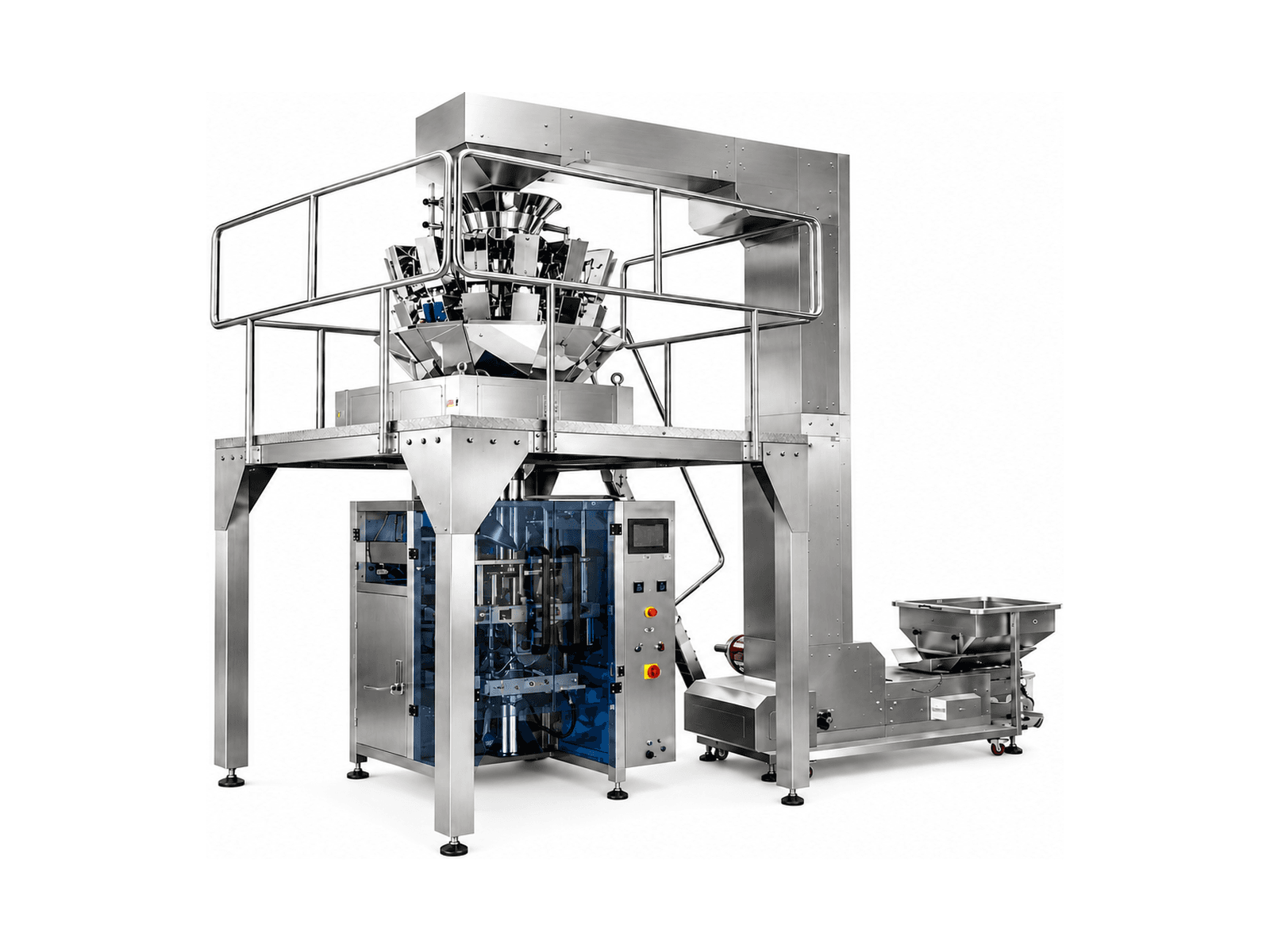

Combination Weigher System

Multi-head weigher for granules and irregular solids. Delivers high-speed, high-accuracy weighing for snacks, nuts, candy, pet food, coffee beans and frozen products.

GranulesSnacksNutsCandyPet FoodCoffee BeansFrozen Food

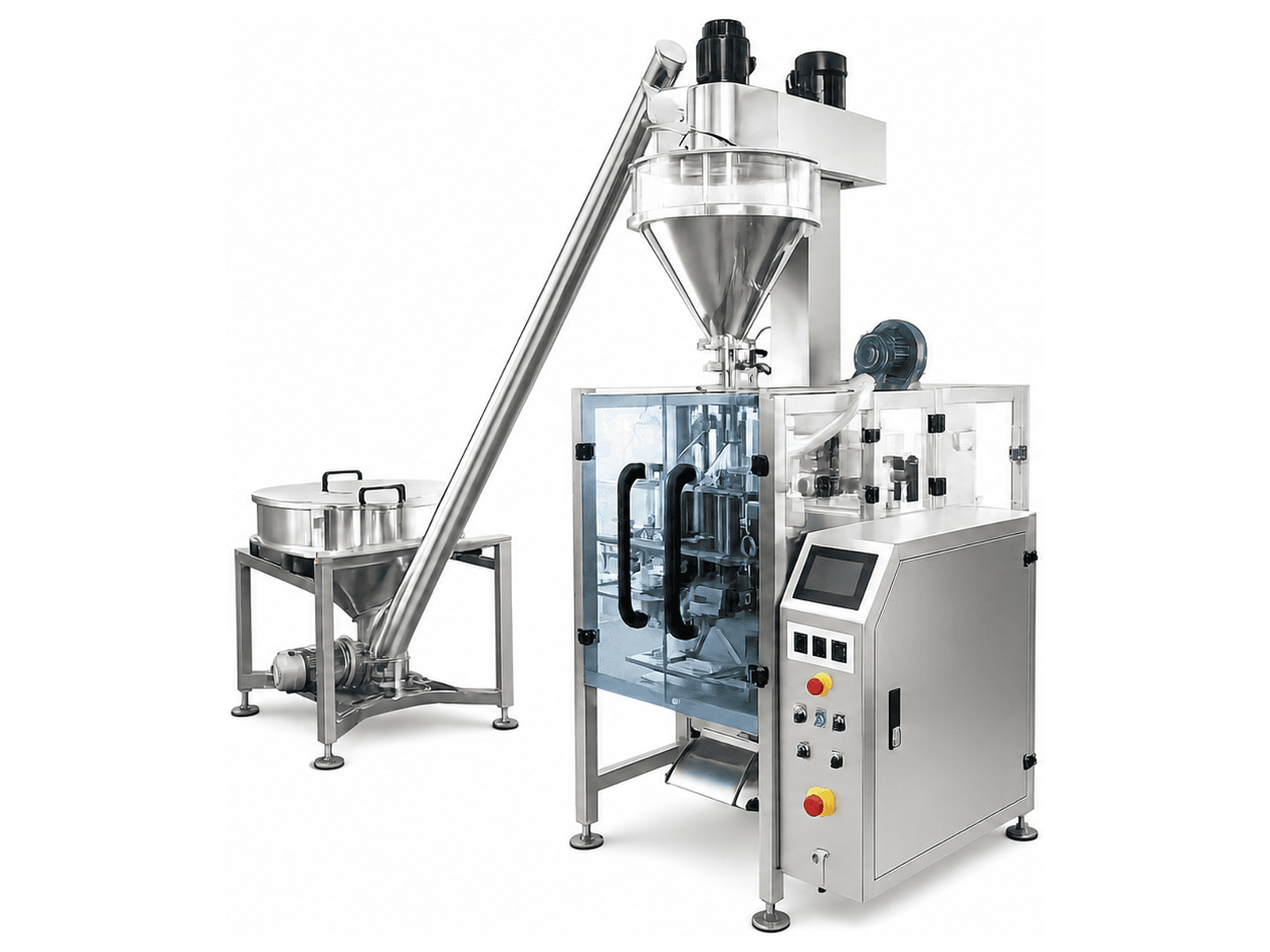

Auger Filling System

Volumetric auger filler for fine powders. Ensures stable, precise dosing for milk powder, flour, protein powder, spices and ground coffee.

Milk PowderFlourProtein PowderSpicesGround CoffeeFine Chemicals

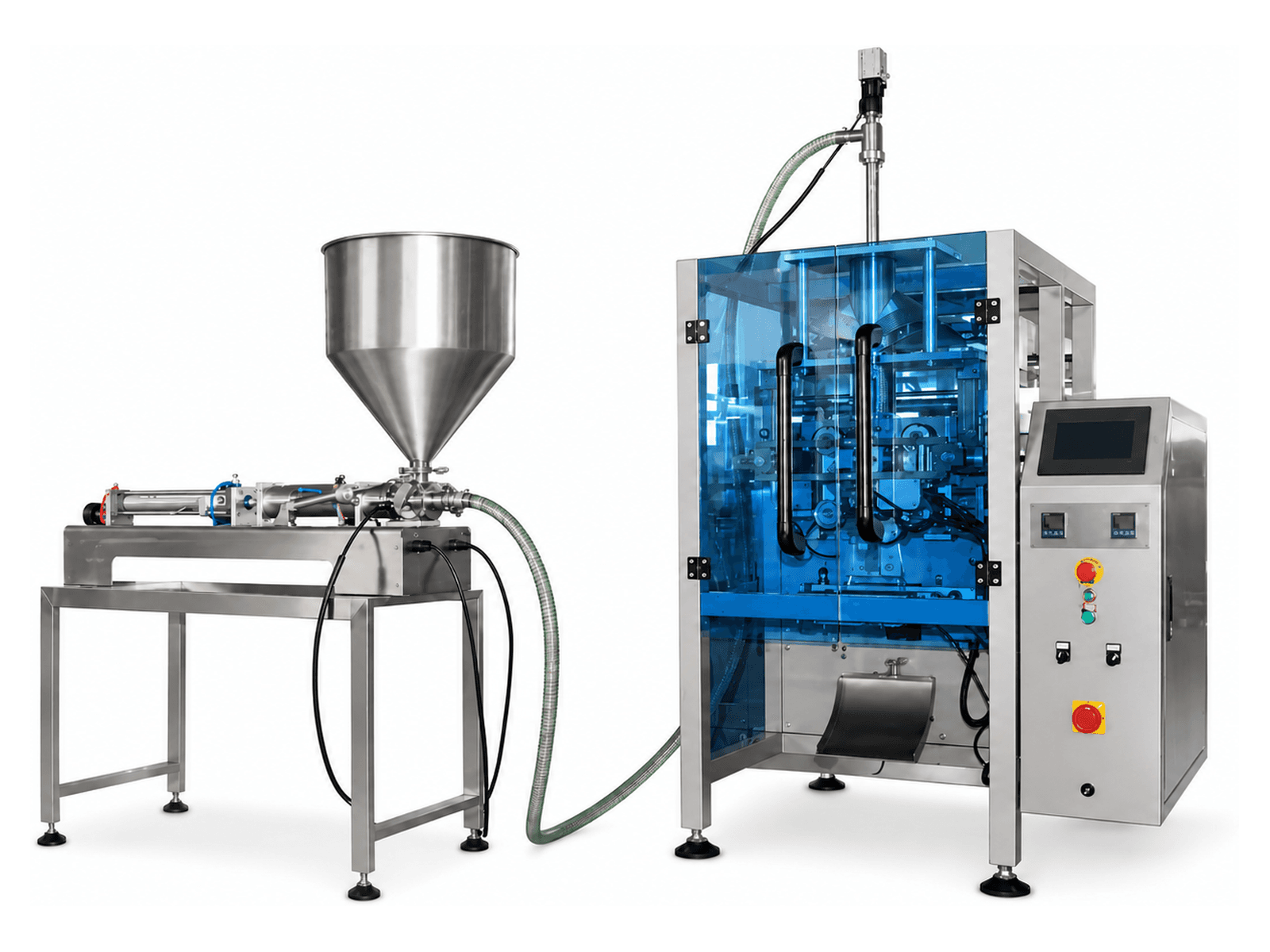

Liquid Pump System

Piston or gear pump filling for liquids, sauces, pastes and viscous products. Can be configured for suitable liquid and paste products based on product characteristics and filling requirements.

SaucesHoneyShampooLiquid DetergentCreamsPastes

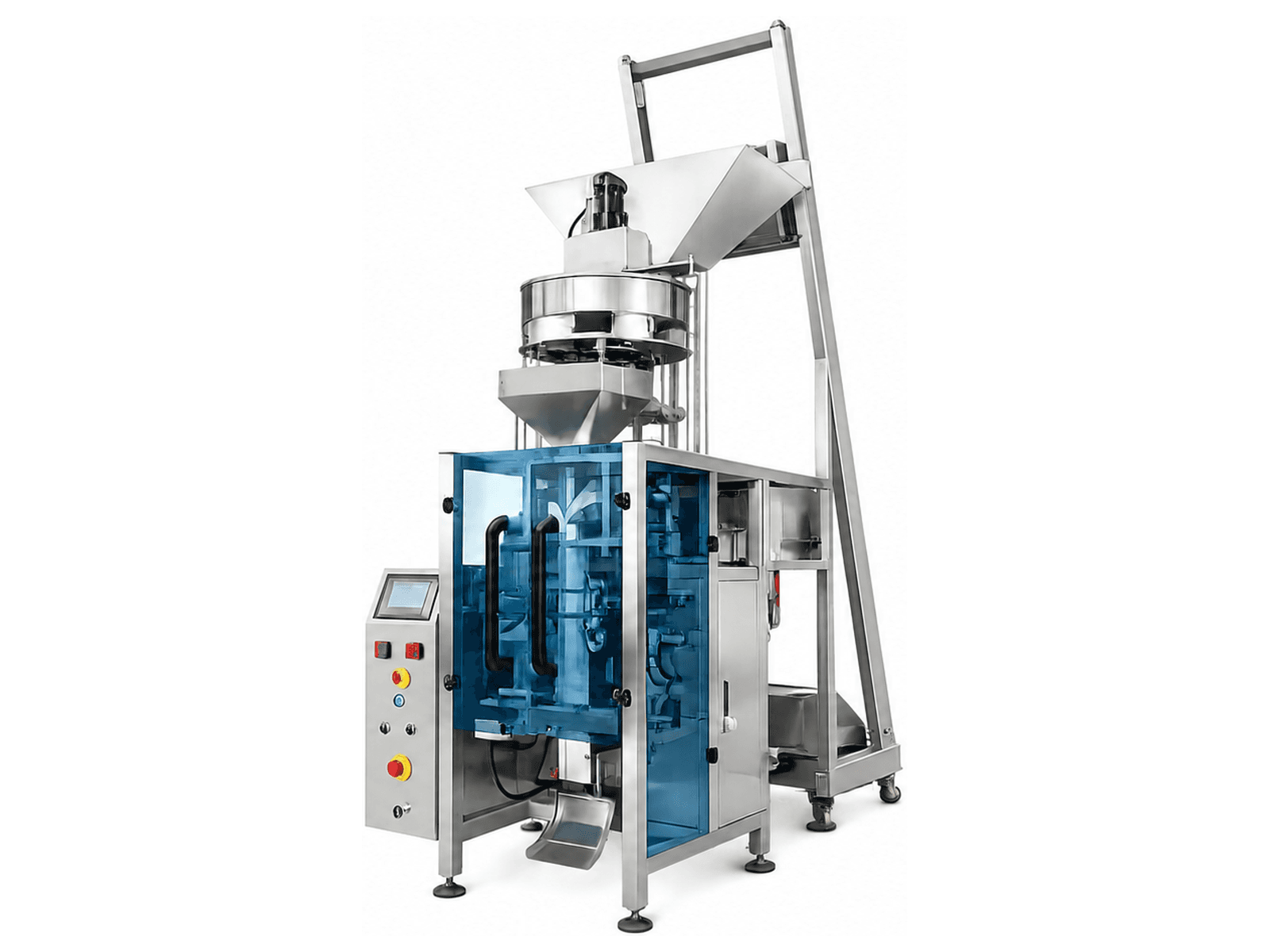

Cup Filler System

Volumetric cup filling for free-flowing granules and small solid products. Economical and reliable choice for consistent particle sizes.

RiceSugarSaltSeedsFertilizerPlastic Pellets

Machine Range Specifications

Explore VFFS machine models for different package sizes, filling requirements and production capacities.

Model	Speed	Max Capacity	Package Size Range	Filling Type	Power
YV-320	30–80 bags/min	Up to 500g	W: 50–160mm / L: 50–250mm	Multi-head Weigher / Auger / Cup	3.5 kW
YV-420	25–70 bags/min	Up to 1kg	W: 80–210mm / L: 80–320mm	Multi-head Weigher / Auger / Liquid Pump	4.2 kW
YV-520	20–60 bags/min	Up to 2.5kg	W: 100–260mm / L: 100–380mm	Multi-head Weigher / Auger / Cup / Liquid Pump	5.5 kW
YV-620	15–50 bags/min	Up to 5kg	W: 130–310mm / L: 130–450mm	Multi-head Weigher / Auger	6.8 kW
YV-720	10–40 bags/min	Up to 10kg	W: 180–360mm / L: 180–550mm	Multi-head Weigher	8.0 kW

YV-3203.5 kW

Speed: 30–80 bags/min
Max Capacity: Up to 500g
Package Size: W: 50–160mm / L: 50–250mm
Filling Type: Multi-head Weigher / Auger / Cup

YV-4204.2 kW

Speed: 25–70 bags/min
Max Capacity: Up to 1kg
Package Size: W: 80–210mm / L: 80–320mm
Filling Type: Multi-head Weigher / Auger / Liquid Pump

YV-5205.5 kW

Speed: 20–60 bags/min
Max Capacity: Up to 2.5kg
Package Size: W: 100–260mm / L: 100–380mm
Filling Type: Multi-head Weigher / Auger / Cup / Liquid Pump

YV-6206.8 kW

Speed: 15–50 bags/min
Max Capacity: Up to 5kg
Package Size: W: 130–310mm / L: 130–450mm
Filling Type: Multi-head Weigher / Auger

YV-7208.0 kW

Speed: 10–40 bags/min
Max Capacity: Up to 10kg
Package Size: W: 180–360mm / L: 180–550mm
Filling Type: Multi-head Weigher

Interested in VFFS Machines?

Tell us about your product and production requirements. Our team will help you find the right machine configuration.

Need an integrated system? Explore Packaging Lines.
