MACHINE FAMILY

Sachet Packing Machines

Flexible single- and multi-lane sachet packaging solutions for powders, granules, liquids and pastes.

Suitable Materials

YUHUA sachet packing machines handle a wide range of products, including milk and coffee powders, sugar and other granules, liquids, viscous sauces and pastes, and small hardware components.

Powder
Granule
Liquid
Paste / Sauce
Hardware

Compatible Package Formats

Select the bag style that fits your brand and product requirements. Each format is available across our full machine range.

Three-side Seal Sachet

Classic 3-side seal sachet for single-serve sugar, salt, ketchup, shampoo and pharmaceutical powders.

Four-side Seal Sachet

4-side seal sachet offering increased seal integrity for larger portion and premium applications.

Stick Pack Sachet

Genuine stick pack sachet format for compact single-serve portions of powder and liquid products.

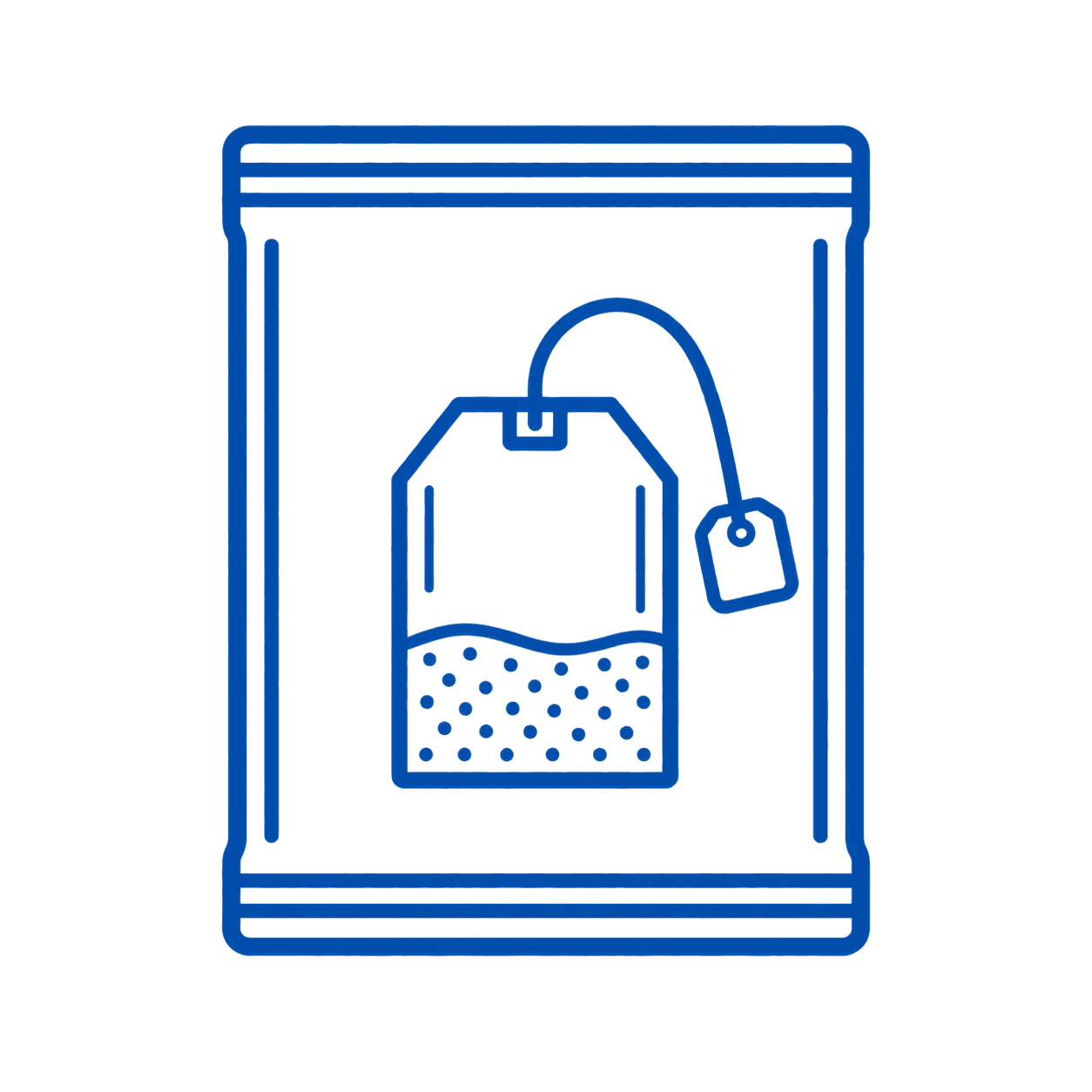

Tea Bag

Tag and string tea bag format with envelope options, produced by dedicated tea bag packaging machines.

HOW TO CHOOSE

How to Choose the Right Sachet Packing Machine

The right configuration depends on your product, sachet dimensions, lane requirements, and target output.

01
Sachet packing product types including powder, granule, liquid and paste

Product Type

Start with the product you need to pack. Powders, granules, liquids and pastes require different dosing and filling configurations.

02

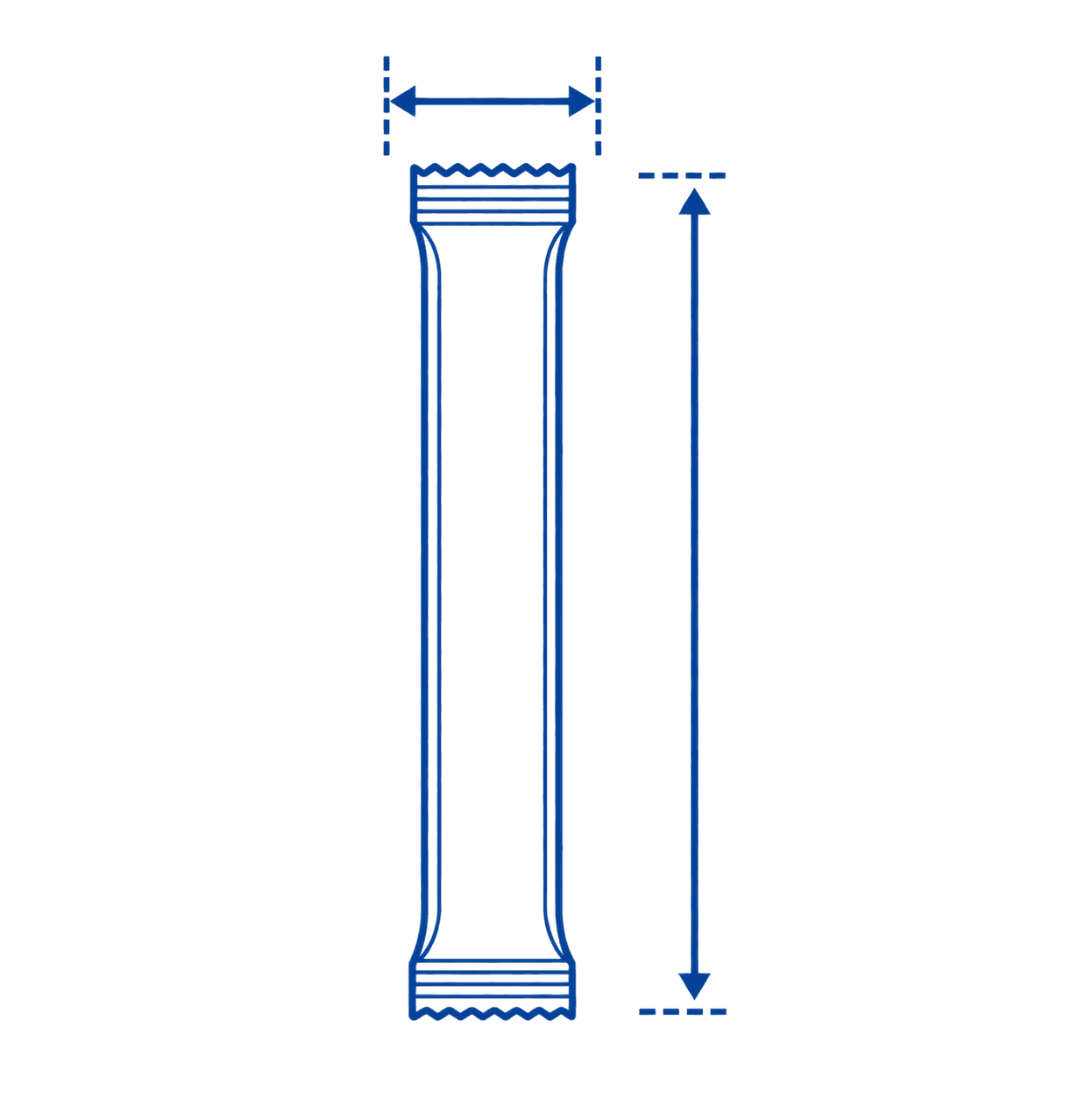

Sachet width and length dimensions

Sachet Size

Define the required sachet width and length based on your product dose and final package format.

03

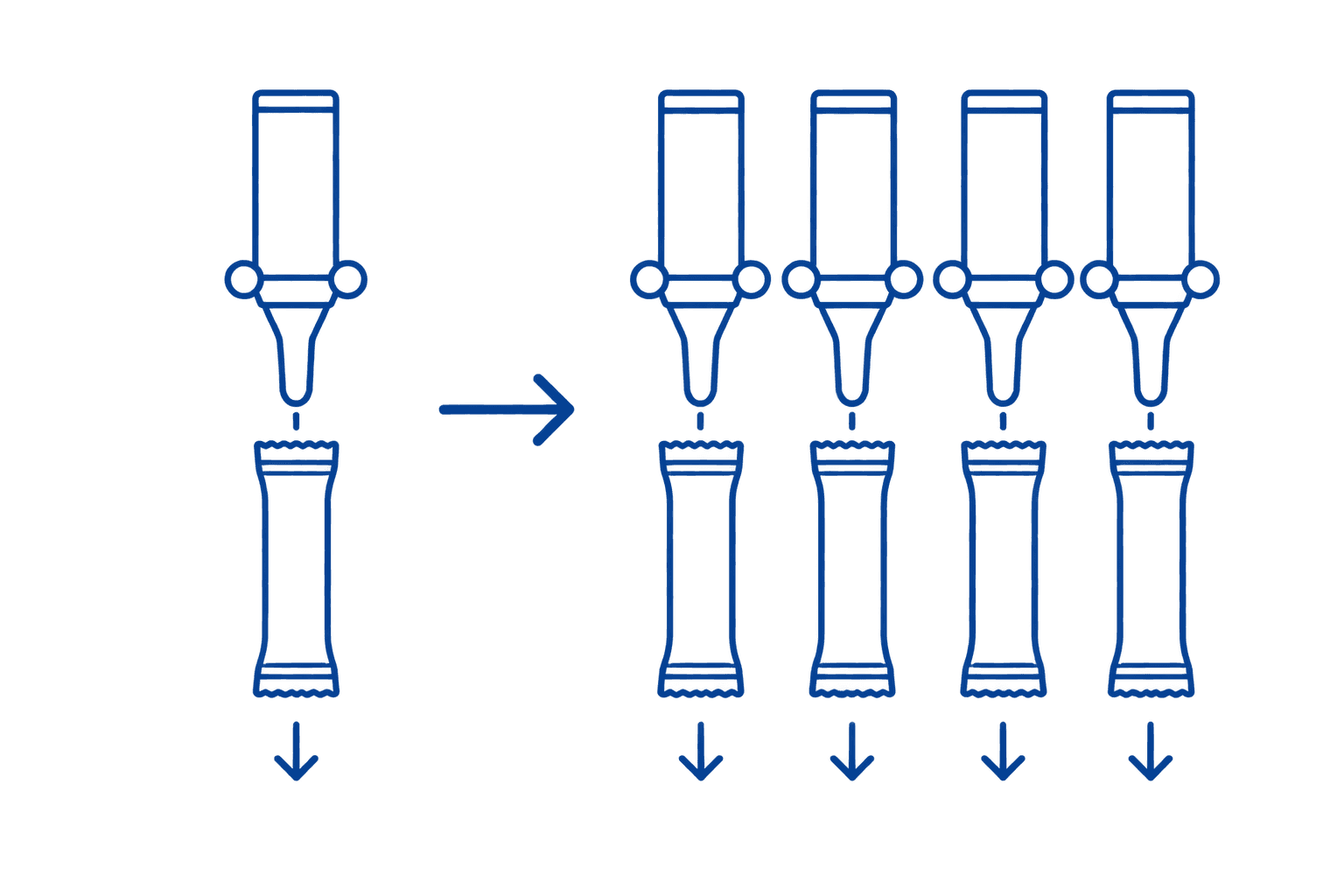

Single-lane and multi-lane sachet packing configurations

Lane Configuration

Choose between single-lane and multi-lane configurations according to the required output, sachet size and available production space.

04

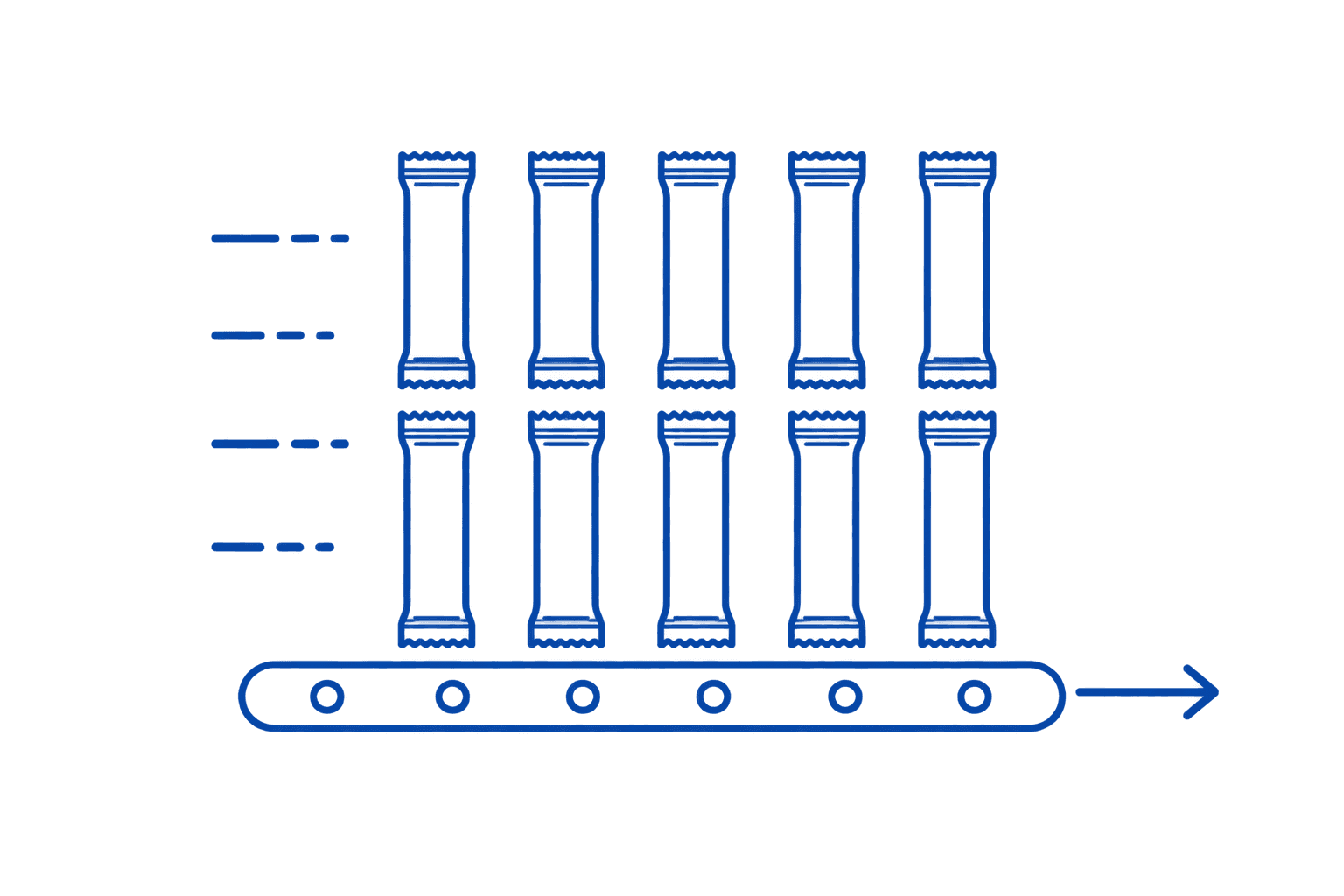

Sachet packing target output on a production conveyor

Target Output

Set your required production output so the appropriate machine size and lane configuration can be selected.

HOW IT WORKS

How Sachet Packaging Works

From film feeding and bag forming to accurate filling, sealing, and cutting, sachet packaging machines complete the packaging process in one continuous sequence.

  1. 01

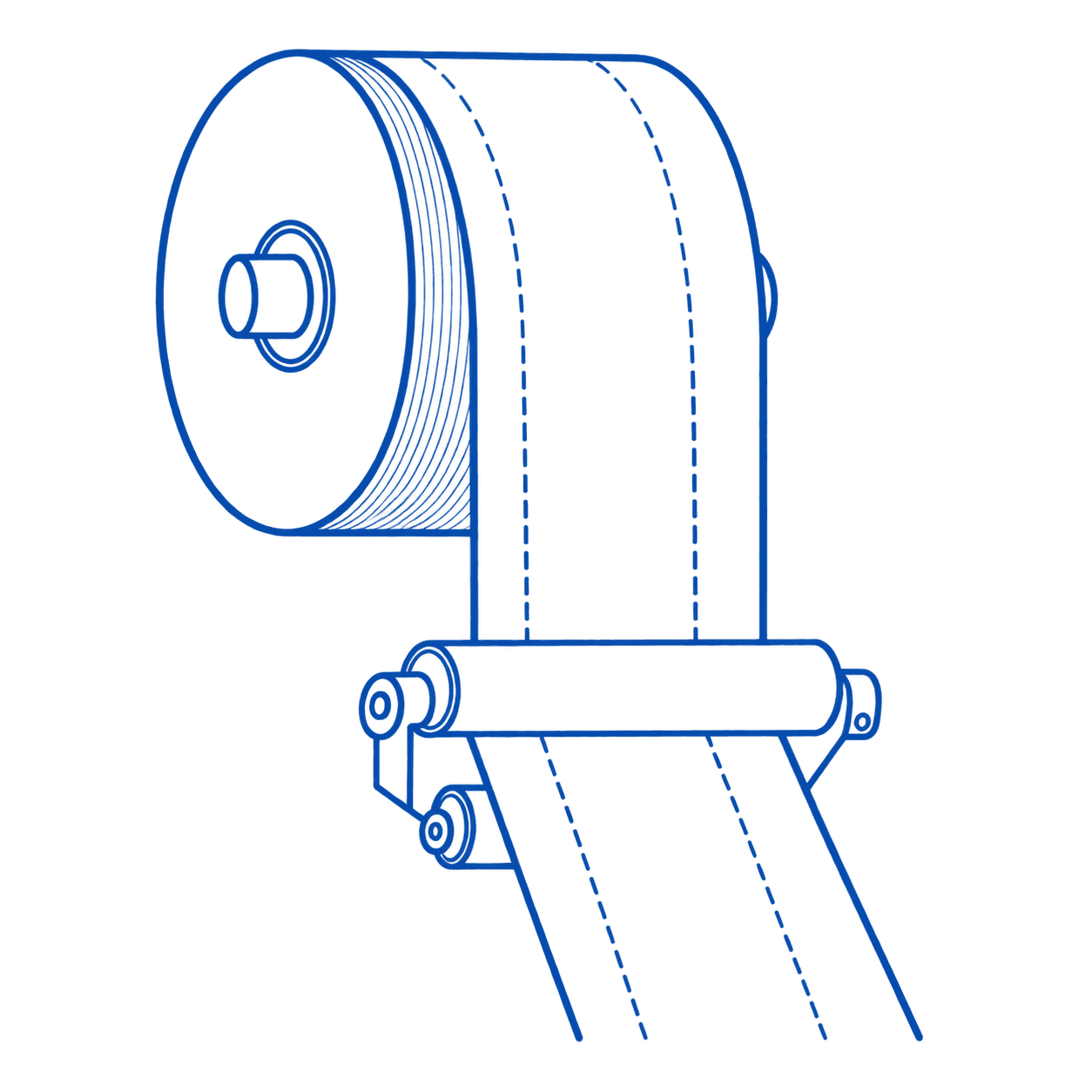

    Sachet packaging film feeding process illustration

    Film Feeding

    Packaging film is unwound and guided smoothly into the forming section.

  2. 02

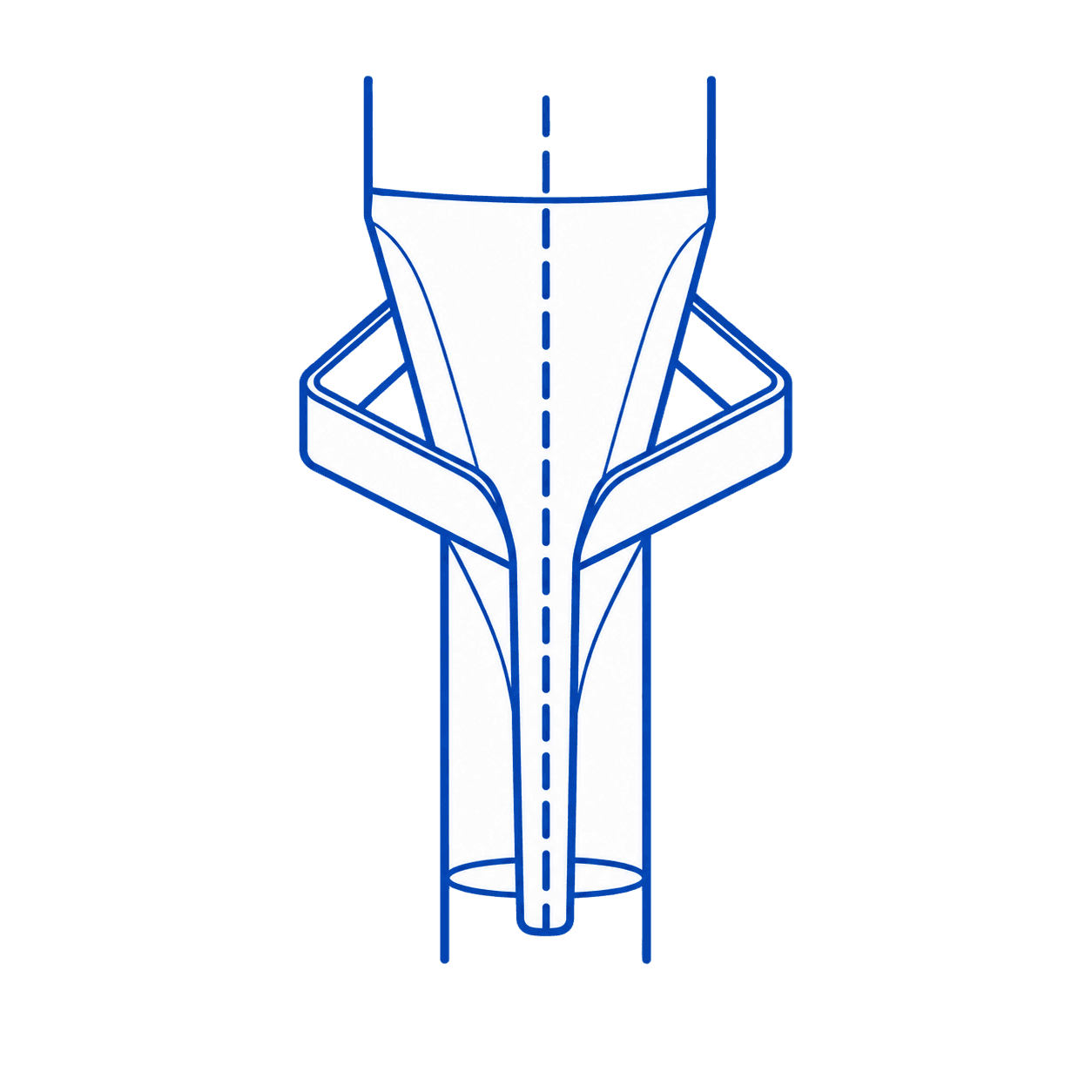

    Sachet bag forming process illustration

    Bag Forming

    The film passes through the forming system and is shaped into the required sachet format.

  3. 03
    Sachet product dosing and filling process illustration

    Product Dosing & Filling

    The selected dosing system measures the product and fills each formed sachet accurately.

  4. 04

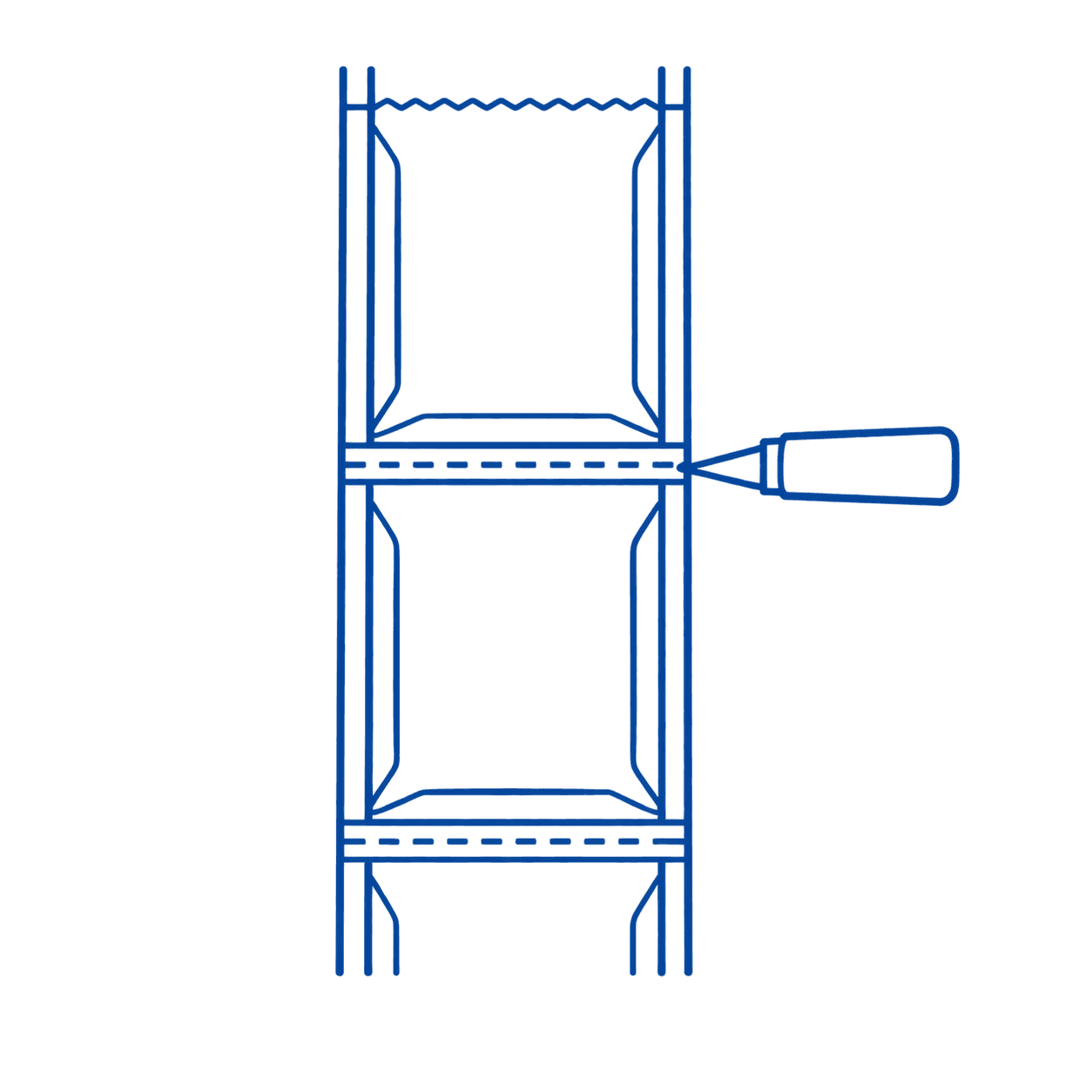

    Sachet sealing and cutting process illustration

    Sealing & Cutting

    The sachet is sealed securely and cut at the defined separation point.

  5. 05

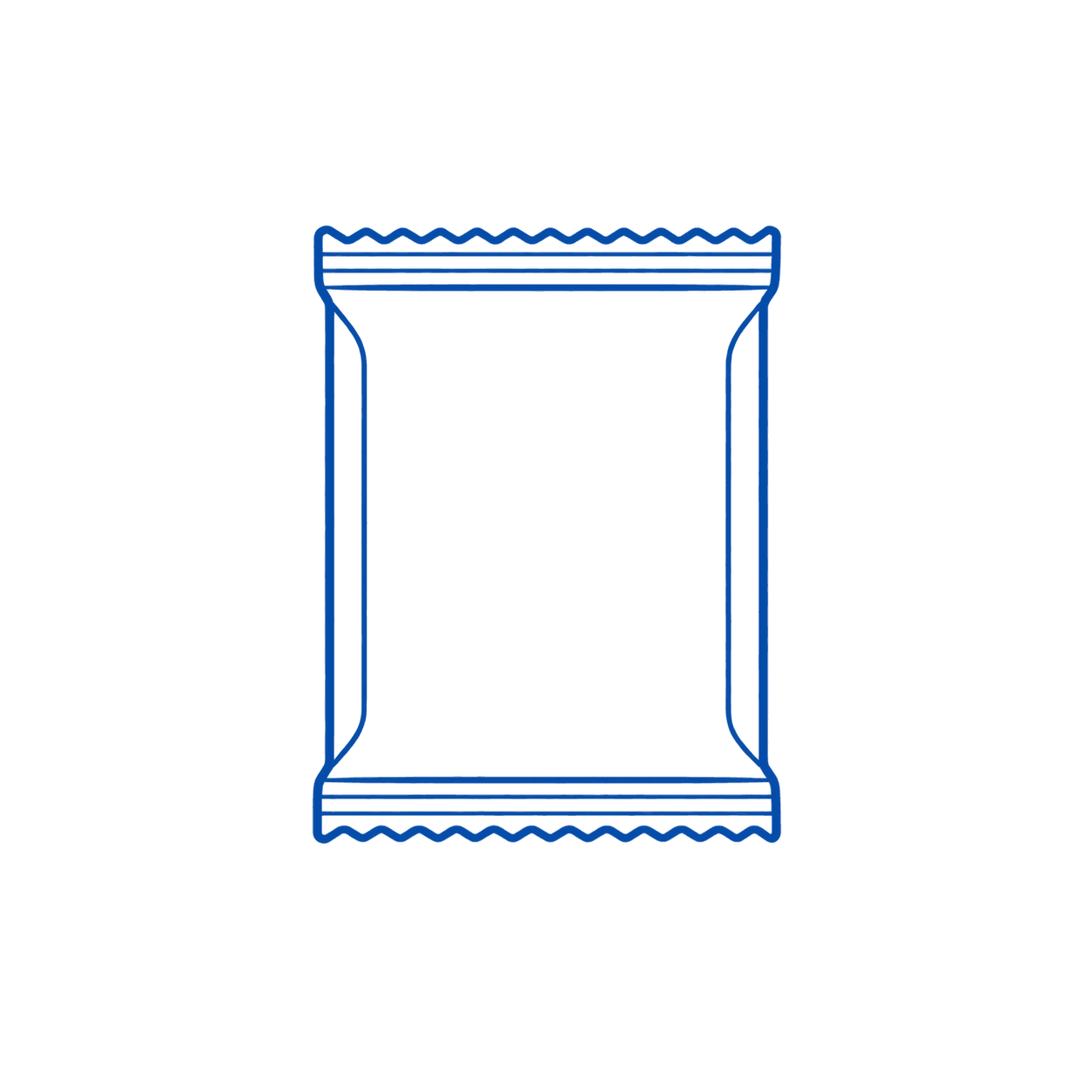

    Finished sachet packaging illustration

    Finished Sachet

    The completed sachet exits the packaging process ready for collection or downstream handling.

MACHINE SOLUTIONS

Sachet Machine Solutions

Start with the right machine family, then compare verified configurations by product type, pouch size, lane configuration, and production speed.

01 — MACHINE FAMILY

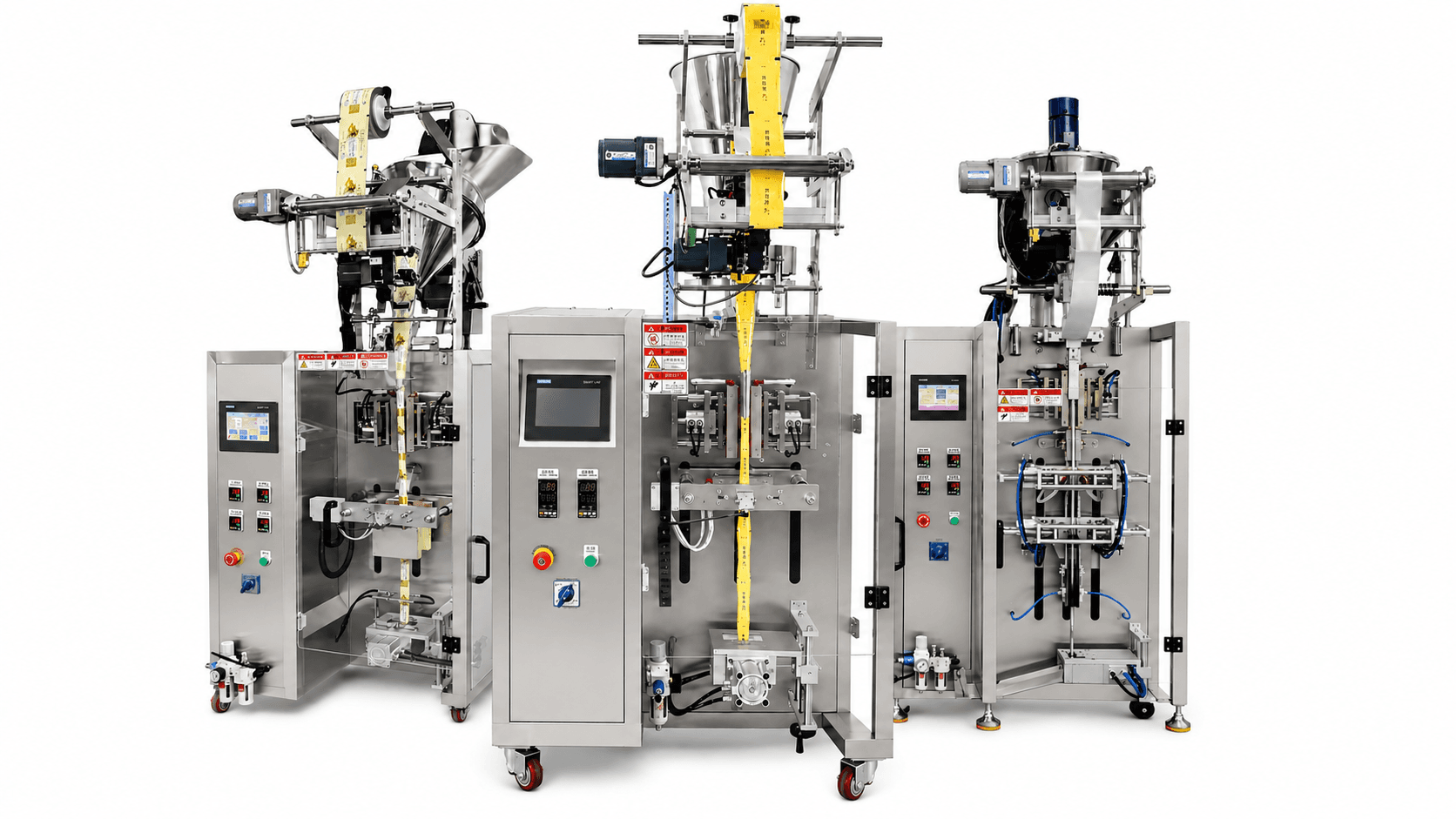

Single-Lane Sachet Machines

Compact single-lane configurations for powder, granule, and liquid products. Compare product handling, fill range, pouch size, sealing format, and machine footprint.

Suitable Products

  • Powder
  • Granule
  • Liquid
YUHUA single-lane sachet packing machine family

Model Specifications

Single-Lane Model Comparison

YH-100FX-0

Product Type
Powder
Speed
40–60 bags/min

Depends on packing weight

Metering Range
0.5–5 g

Screw metering can be customized.

Pouch Size (W × L)
40–110 × 40–150 mm
Standard Seal
Four-side seal
Machine Dimensions (L × W × H)
848 × 680 × 1700 mm

YH-100ZX-0

Product Type
Granule
Speed
30–60 bags/min

Depends on packing weight

Metering Range
10–30 g
Pouch Size (W × L)
50–110 × 50–150 mm
Standard Seal
Back seal
Machine Dimensions (L × W × H)
1100 × 804 × 1890 mm

YH-200ZSB-02

Product Type
Liquid
Speed
40–60 bags/min

Depends on filling weight

Measuring Range
5–20 g

Can be customized according to customer requirements.

Pouch Size (W × L)
40–110 × 40–150 mm
Standard Seal
Three-side seal
Machine Dimensions (L × W × H)
900 × 805 × 1850 mm

YH-100FX-0 secondary options

Film width: ≤ 220 mm

Custom sealing: Back seal · Three-side seal · Special-shaped bag

Screw metering can be customized.

YH-100ZX-0 secondary options

Film width: ≤ 220 mm

Custom sealing: Three-side seal · Four-side seal · Special-shaped bag

YH-200ZSB-02 secondary options

Film width: ≤ 240 mm

Custom sealing: Back seal · Four-side seal · Special-shaped bag

Can be customized according to customer requirements.

02 — MACHINE FAMILY

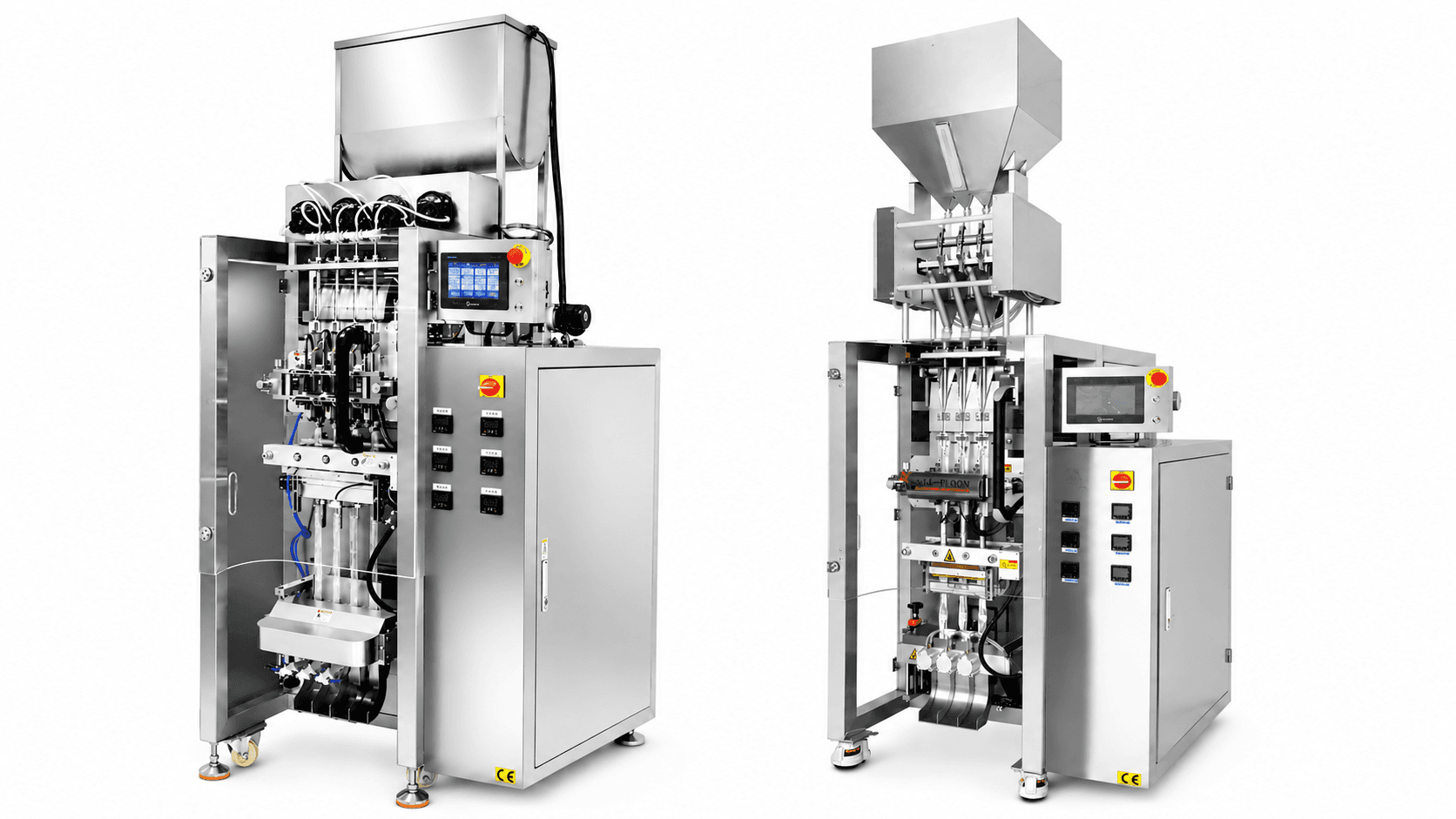

Multi-Lane Sachet Machines

Choose a multi-lane series according to sachet sealing format, lane configuration, pouch size, and required production output.

Package Formats

  • Stick Pack
  • Three-Side Seal
  • Four-Side Seal
YUHUA multi-lane sachet packing machine family

Model Specifications

Multi-Lane Series A

Stick Pack / Three-Side Seal

Speed is stated per lane. Lane count is configured for each project within the listed range.

YH-300
Lane Configuration
2–4 lanes
Speed / Lane
20–40 bags/min
Pouch Size (W × L)
20–70 × 50–170 mm
Film Width
300 mm
Machine Dimensions (L × W × H)
1900 × 1440 × 3130 mm
YH-600
Lane Configuration
3–10 lanes
Speed / Lane
20–40 bags/min
Pouch Size (W × L)
20–95 × 50–170 mm
Film Width
600 mm
Machine Dimensions (L × W × H)
1860 × 1750 × 3300 mm
YH-900
Lane Configuration
4–16 lanes
Speed / Lane
20–40 bags/min
Pouch Size (W × L)
20–105 × 50–170 mm
Film Width
900 mm
Machine Dimensions (L × W × H)
1860 × 2050 × 3375 mm

Multi-Lane Series B

Four-Side Seal

Machine speed is shown as cycles/min. Total output varies with the lane configuration.

YH-500
Lane Configuration
2–4 lanes
Machine Speed
25–40 cycles/min
Pouch Size (W × L)
50–125 × 45–160 mm
Film Width
500 mm
Machine Dimensions (L × W × H)
1540 × 1300 × 2270 mm
YH-700
Lane Configuration
3–10 lanes
Machine Speed
25–40 cycles/min
Pouch Size (W × L)
50–125 × 45–160 mm
Film Width
700 mm
Machine Dimensions (L × W × H)
1790 × 1445 × 2340 mm
YH-980
Lane Configuration
4–16 lanes
Machine Speed
25–40 cycles/min
Pouch Size (W × L)
50–125 × 45–160 mm
Film Width
980 mm
Machine Dimensions (L × W × H)
1940 × 1600 × 2450 mm

03 — MACHINE FAMILY

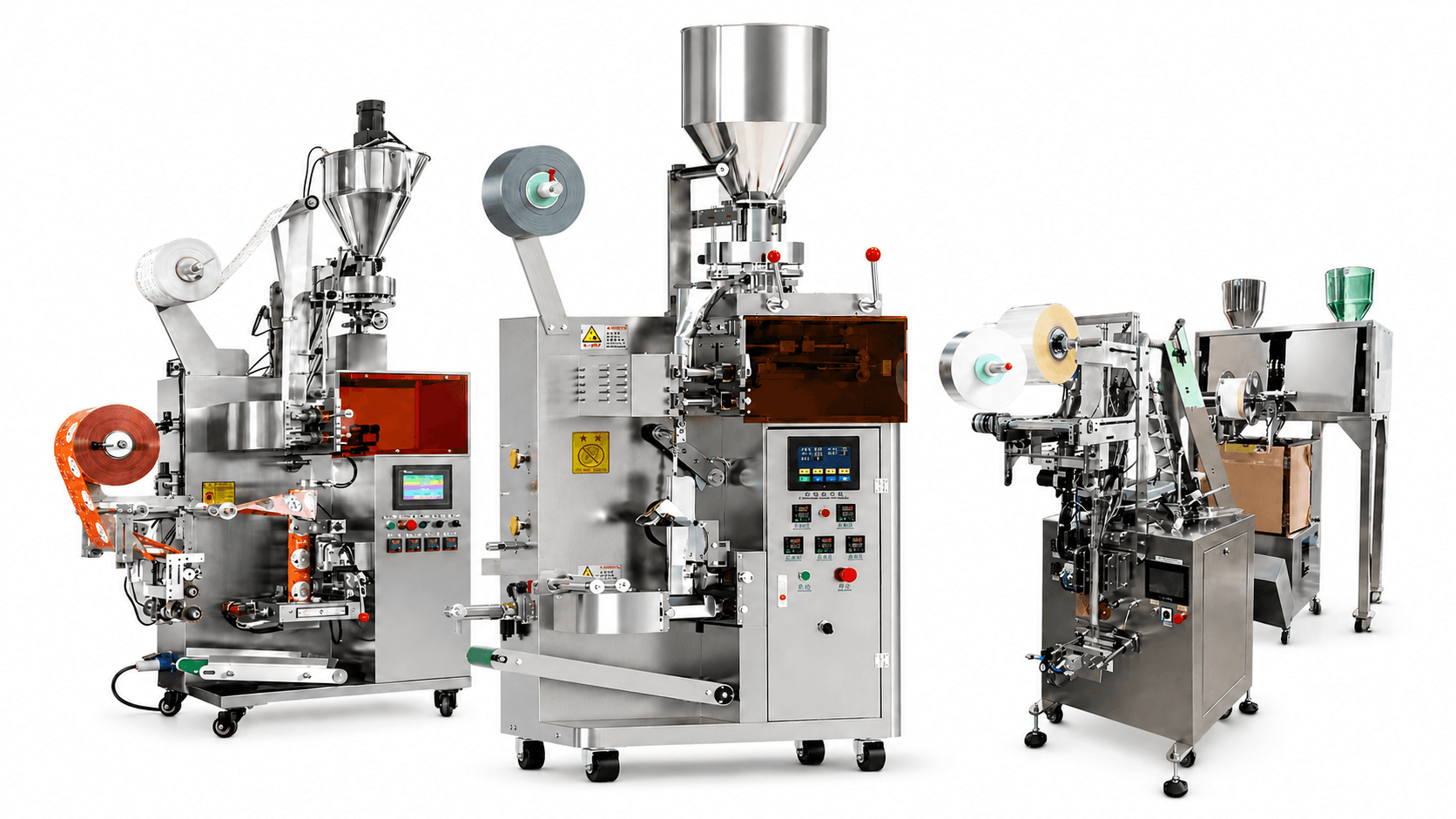

Tea Bag Packing Machine

A dedicated inner and outer tea bag packing configuration with integrated thread and tag handling.

Packaging Solution

  • Tea
  • Inner & Outer Tea Bag
  • String & Tag
YUHUA inner and outer tea bag packing machine

Model Specifications

Tea Bag Model Specifications

Verified Model

YH-169

Inner & Outer Tea Bag Packing Machine

Packaging Speed
30–40 bags/min

Depends on filling weight

Measuring Range
3–10 g

Screw measuring can be customized according to customer request.

Filling Method
Volumetric Cup
Inner Bag Size (W × L)
40–80 × 50–70 mm
Outer Bag Size (W × L)
60–110 × 70–120 mm
Tag Size (W × L)
40–55 × 20–24 mm
Thread Length
155 mm
Inner Bag Sealing Type
Three-side seal
Inner Bag Seal Method
Hot sealing
Packaging Material
Filter paper · Cotton thread · Composite film · Labels
Machine Dimensions (L × W × H)
2000 × 1500 × 1200 mm
Air Consumption
0.8 MPa · 0.4 m³/min

FAQ

Sachet Packing Machine FAQs

Answers to common questions about sachet formats, machine configuration, production requirements, and machine selection.

What sachet formats can your machines produce?

YUHUA sachet packing machines can be configured for back-seal, three-side-seal, and four-side-seal sachets. The suitable format depends on the machine configuration, product, sachet dimensions, and production requirements.

What is the difference between single-lane and multi-lane sachet machines?

Single-lane machines produce one sachet at a time and are suitable for a wide range of powder, granule, and liquid applications. Multi-lane machines form and fill several sachets in parallel and are designed for applications that require higher production capacity. The appropriate configuration depends on the required output, sachet format, product characteristics, and available production space.

How do I choose the right sachet packing machine?

Start with four key factors: your product type, required sachet size, lane configuration, and target output. These determine the suitable filling system and machine configuration. YUHUA can then match the application with an appropriate single-lane, multi-lane, or specialized tea bag packing solution.

Can the number of lanes be customized?

Yes. Multi-lane sachet machines can be configured with different lane quantities according to the required sachet size, output, product, and project requirements. YUHUA can design multi-lane configurations from 3 lanes up to 10 lanes based on the application.

Do you offer machines for inner and outer tea bags with string and tag?

Yes. YUHUA offers the YH-169 Inner & Outer Tea Bag Packing Machine for tea bag packaging with inner and outer bags, string, and tag. Its specifications are shown in the Tea Bag Packing Machine section above.

What information should I provide before requesting a quotation?

Please provide your product type, filling range or target weight/volume, sachet style, sachet dimensions, required production output, and any special packaging requirements. Product samples, packaging film information, or reference package photos can also help YUHUA recommend the appropriate machine configuration.
