Case Handling Machines

Automated case erecting, robotic case packing and case sealing solutions for end-of-line packaging.

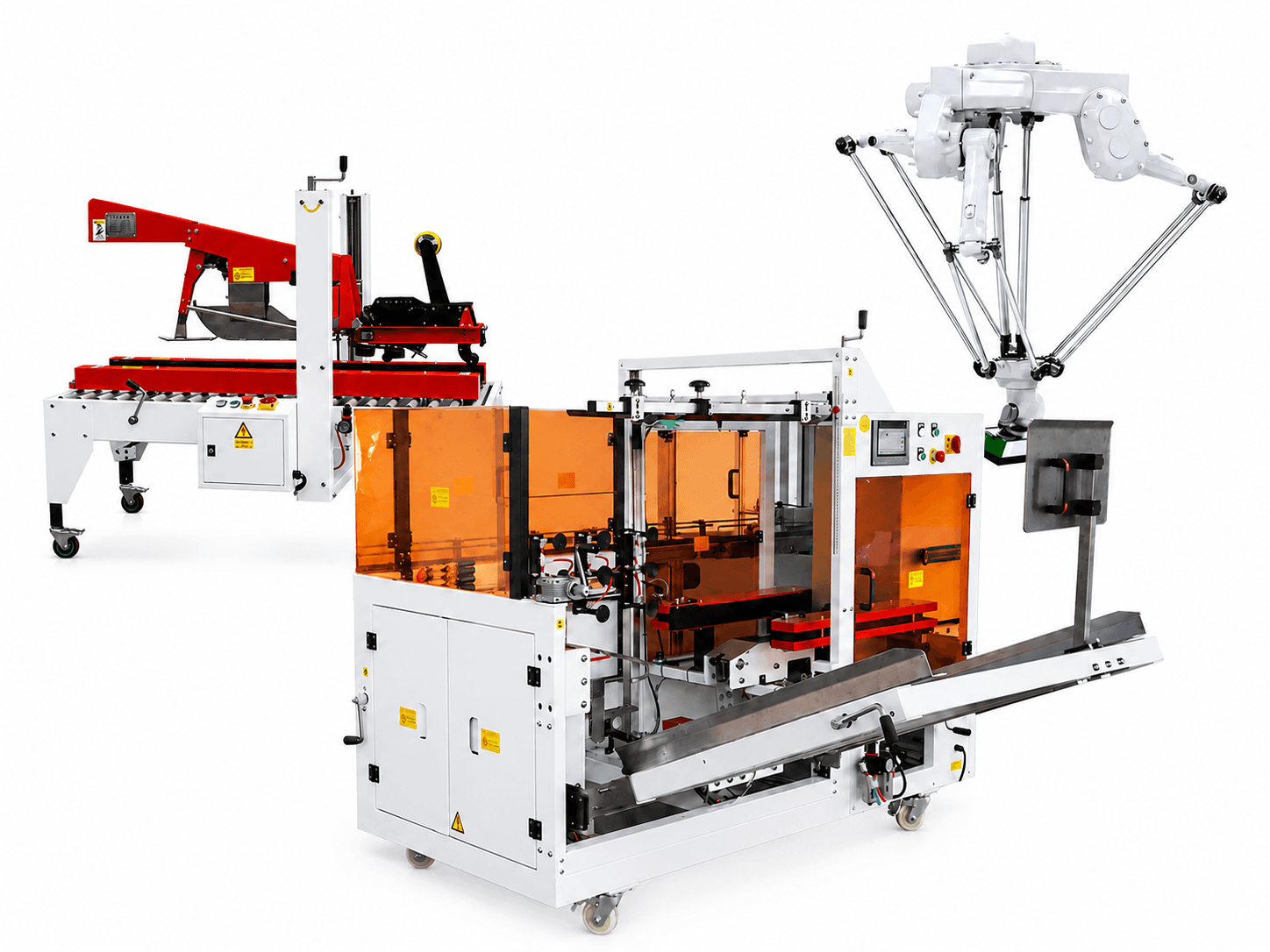

Case handling machines for case erecting, robotic packing and sealing

Case Handling Solutions

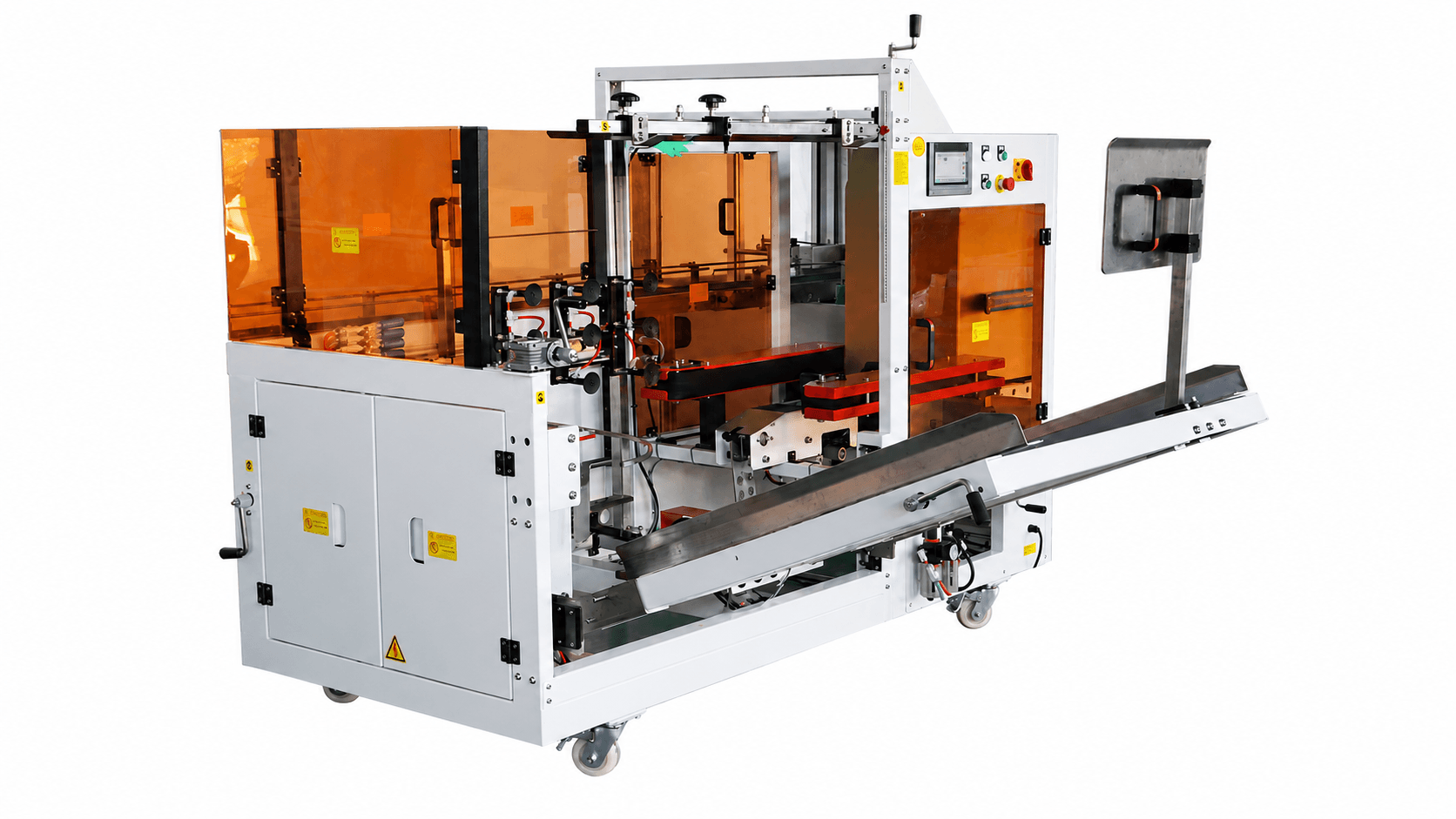

Case Erecting Machine

Case Erecting Machine

Automated case forming and bottom sealing for consistent case setup.

Robotic Case Packing System

Robotic Case Packing System

Flexible robotic handling for automated product loading into cases based on project requirements.

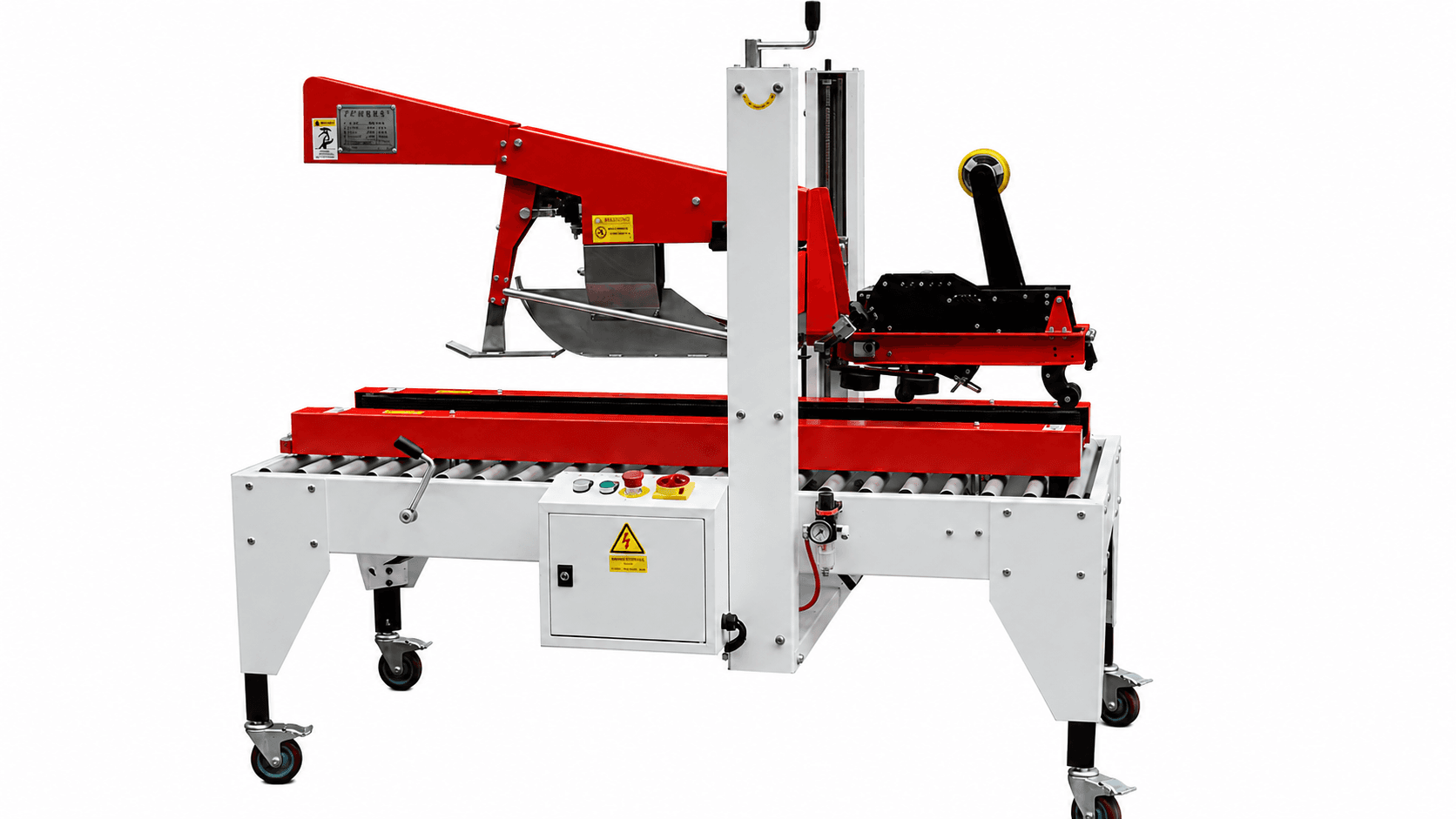

Case Sealing Machine

Case Sealing Machine

Automated case closing and tape sealing for shipment-ready cases.

How Case Handling Works

See how cases are formed, loaded and sealed as part of an automated end-of-line packaging process.

  1. 01

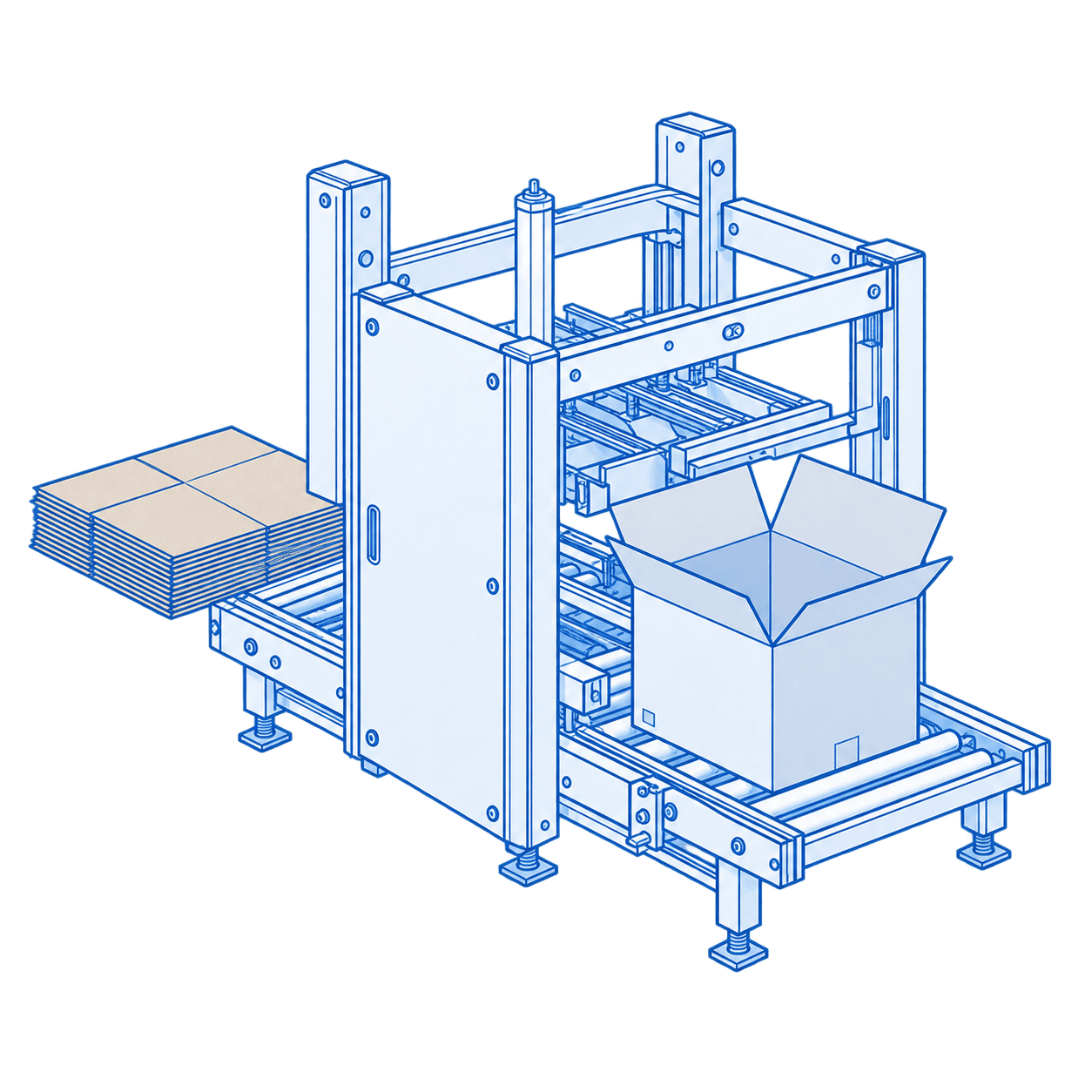

    Case erecting machine forming an open corrugated case

    Case Erecting

    Flat corrugated cases are opened, formed and bottom-sealed for packing.

  2. 02

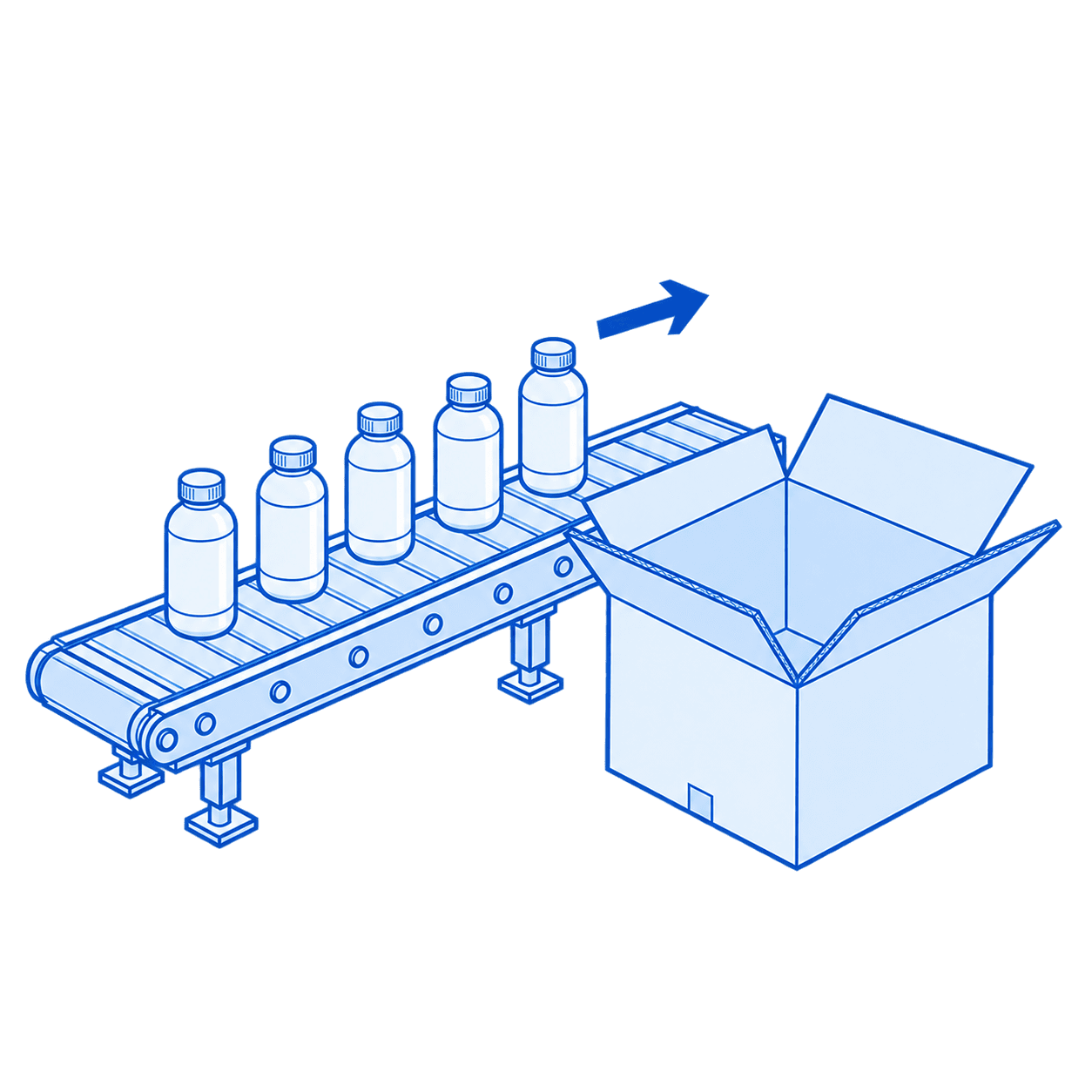

    Packaged products moving toward an open corrugated case

    Product Infeed

    Products arrive from the upstream packaging process and are prepared for case loading.

  3. 03

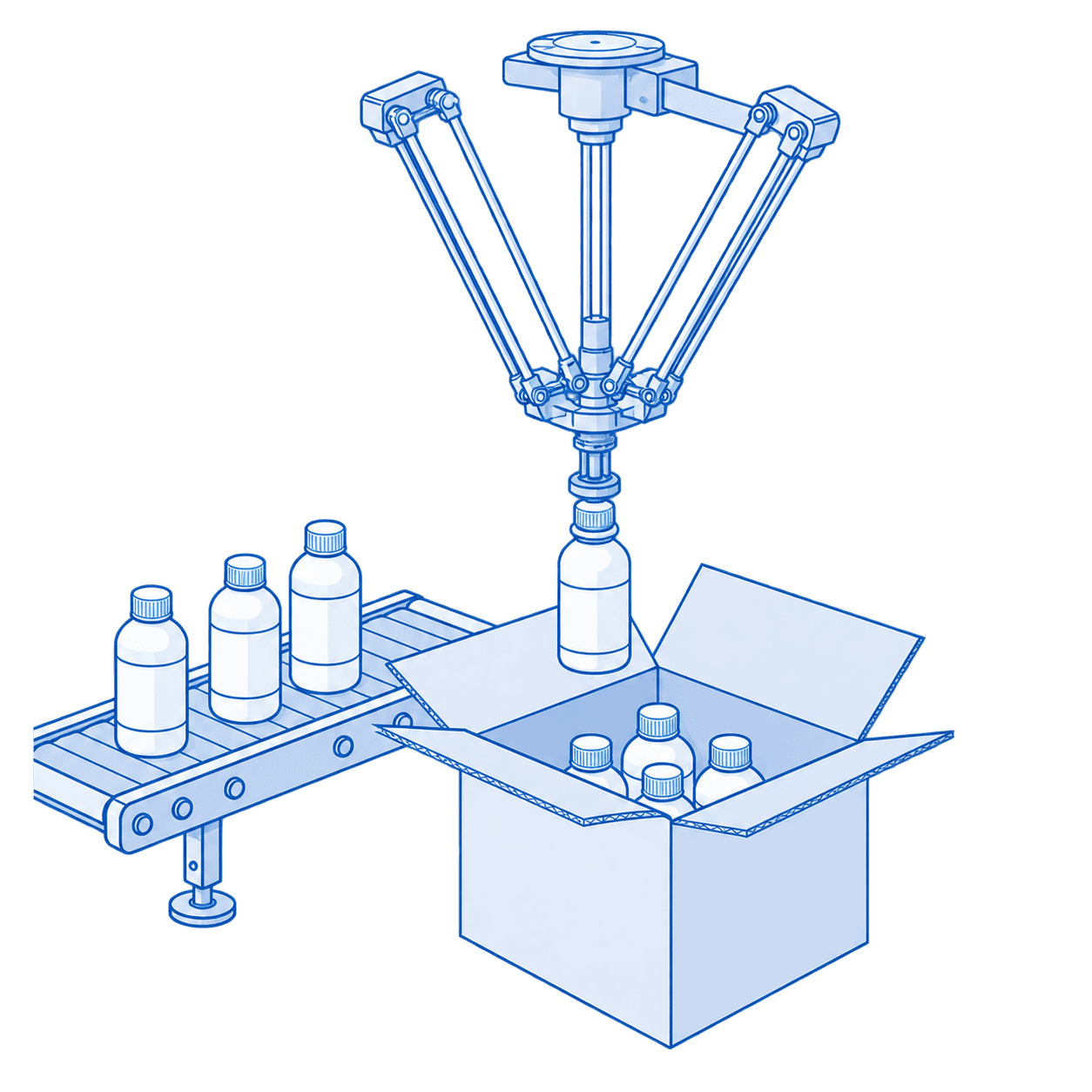

    Delta robot loading products into an open corrugated case

    Case Packing

    Products are loaded into cases according to the required packing arrangement, with robotic handling configured when needed.

  4. 04

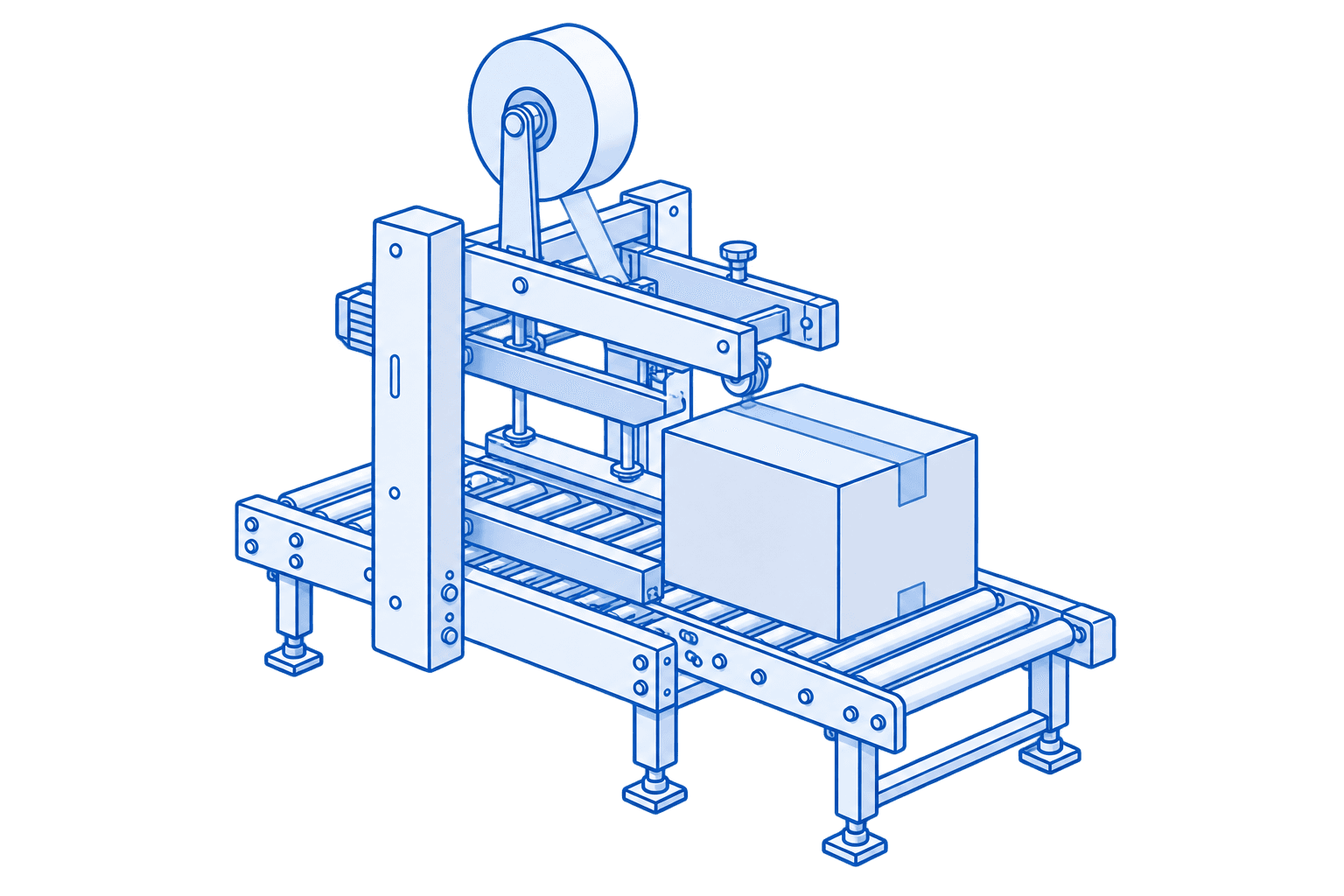

    Case sealing machine closing and tape sealing a corrugated case

    Case Sealing

    The filled case is closed and sealed with tape.

  5. 05

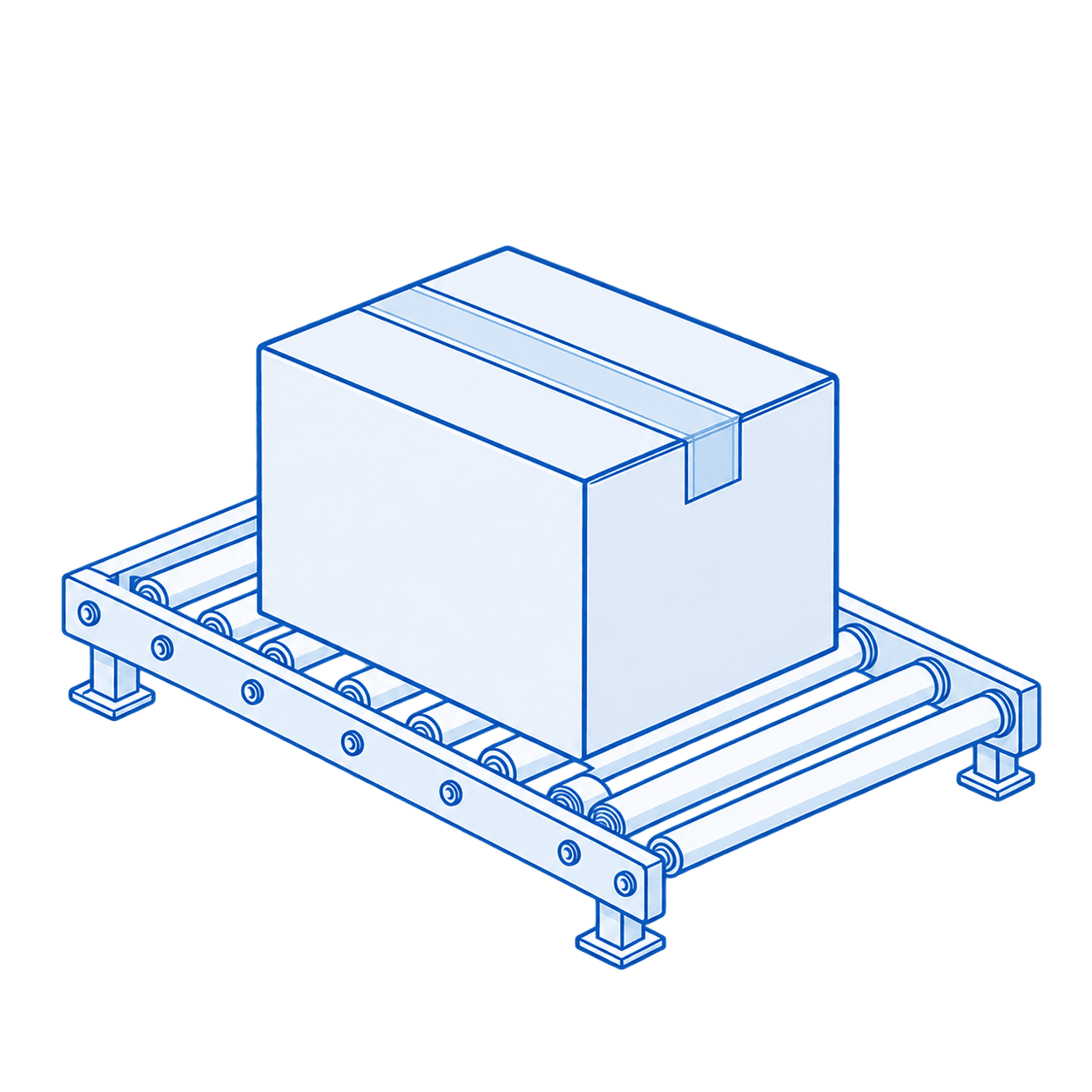

    Finished sealed corrugated case on an outfeed conveyor

    Finished Case

    The sealed case leaves the system ready for downstream handling or shipment.

Technical Specifications

Case handling equipment is configured around the case format, product handling requirements and installation conditions of each project.

Standard Equipment

Case Erecting Machine

Configured to corrugated case dimensions

3–7Cases / min
Case erecting machine for corrugated case forming

Applicable Case Range

Applicable Case Length
250–450 mm
Applicable Case Width
200–400 mm
Applicable Case Height
240–400 mm

Machine Details

Case Erecting Speed
3–7 cases/min
Tape Width
48 / 60 / 72 mm
Working Height
650 mm
Machine Dimensions
2500 × 2000 × 1400 mm

Standard Equipment

Case Sealing Machine

Configured to corrugated case dimensions

18m / min
Case sealing machine for corrugated cases

Applicable Case Range

Applicable Case Length
250–450 mm
Applicable Case Width
200–400 mm
Applicable Case Height
140–300 mm

Machine Details

Machine Dimensions
1700 × 950 × 1300 mm
Case Sealing Speed
18 m/min
Working Height
470–780 mm
Tape Width
48 / 60 mm

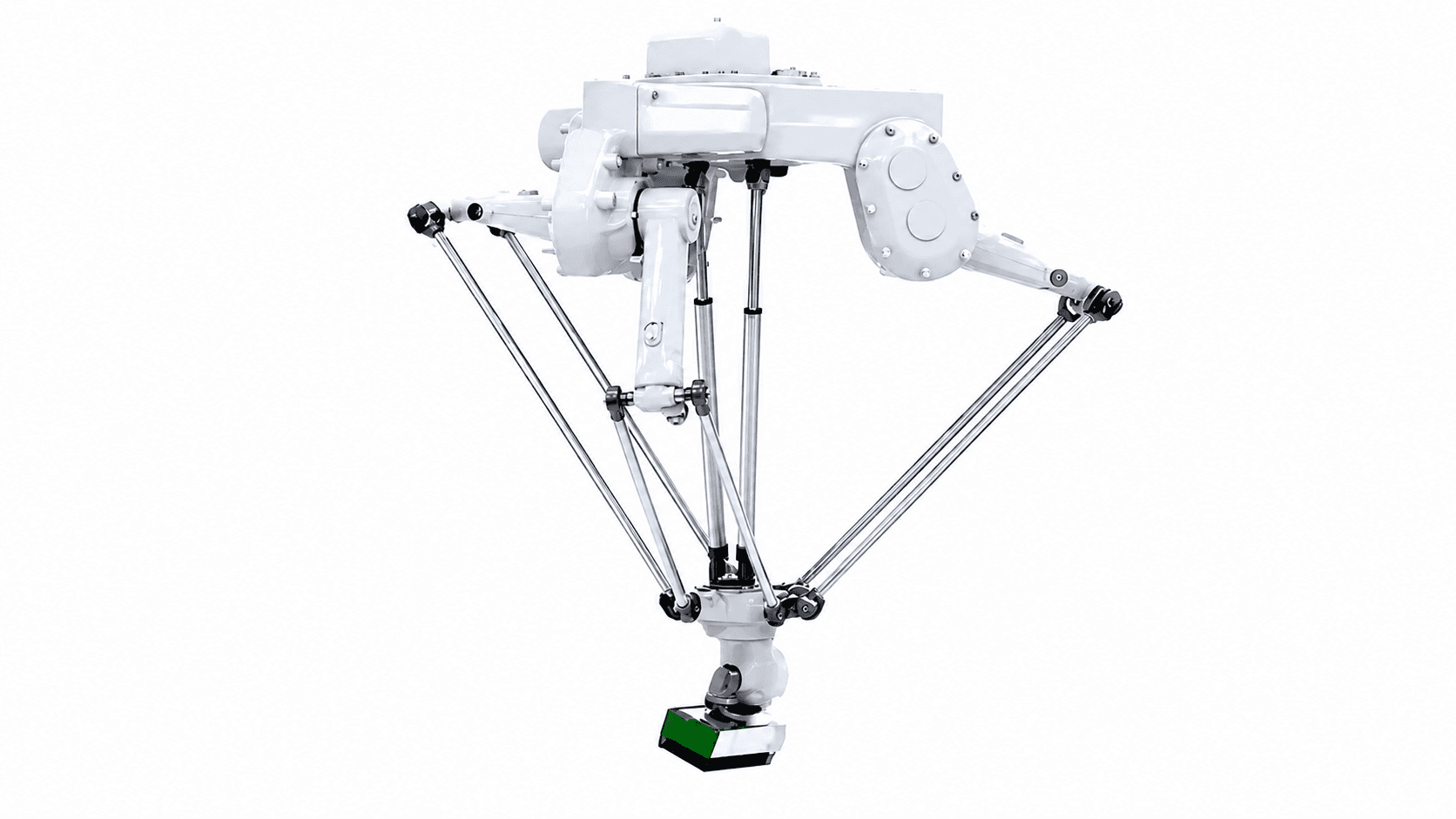

Robotic case packing system

Custom Engineering

Project-specific configuration

Robotic Case Packing System

No fixed model or standard specification. Each system is engineered around the actual product, case pattern, required output and available installation space.

Product

Handling characteristics

Case Pattern

Required packing arrangement

Output

Project requirements

Site Layout

Available installation space

What We Need for Your Project

Preparing these details helps us evaluate your case-handling requirements and recommend the appropriate configuration.

01

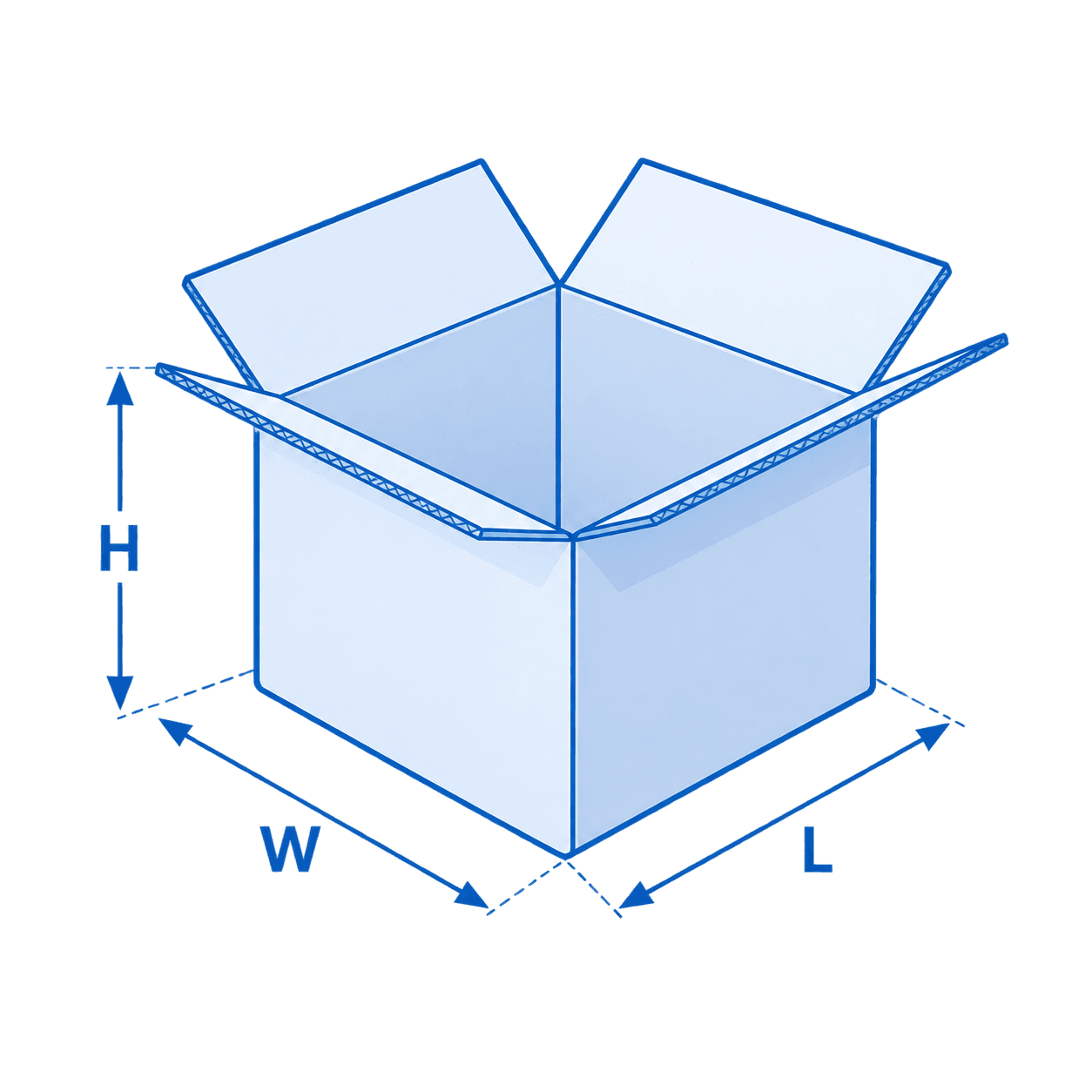

Corrugated case length width and height dimensions

Case Dimensions

Provide the case length, width and height so we can confirm the suitable machine configuration.

L × W × H

02

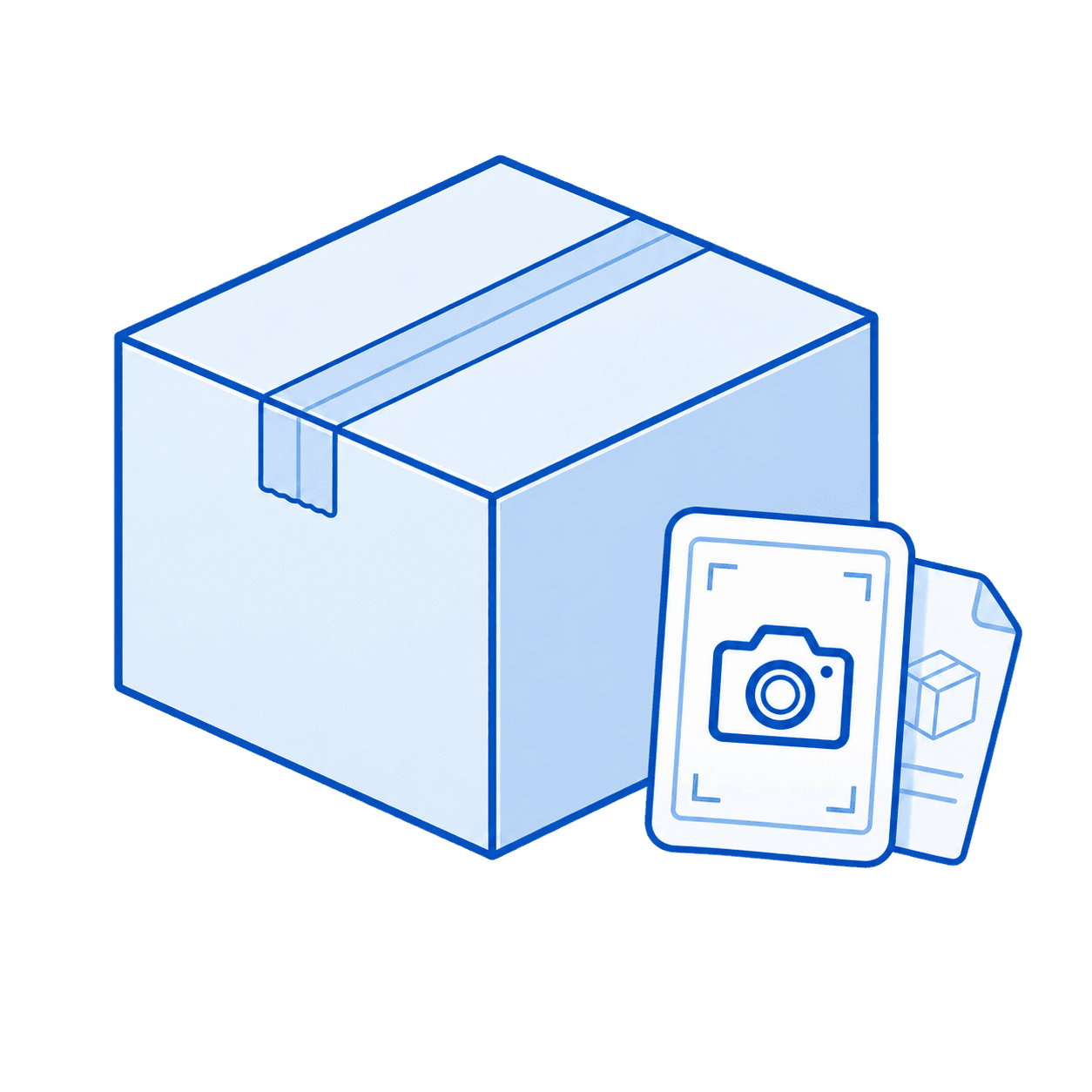

Corrugated case photo or drawing reference

Case Photos or Drawings

Photos or drawings help us confirm the corrugated case structure and handling requirements.

Photos or drawings

03

Products arranged inside an open corrugated case

Product & Packing Arrangement

For case packing projects, provide the product type, product size and the required packing arrangement inside the case.

Product + case pattern

04

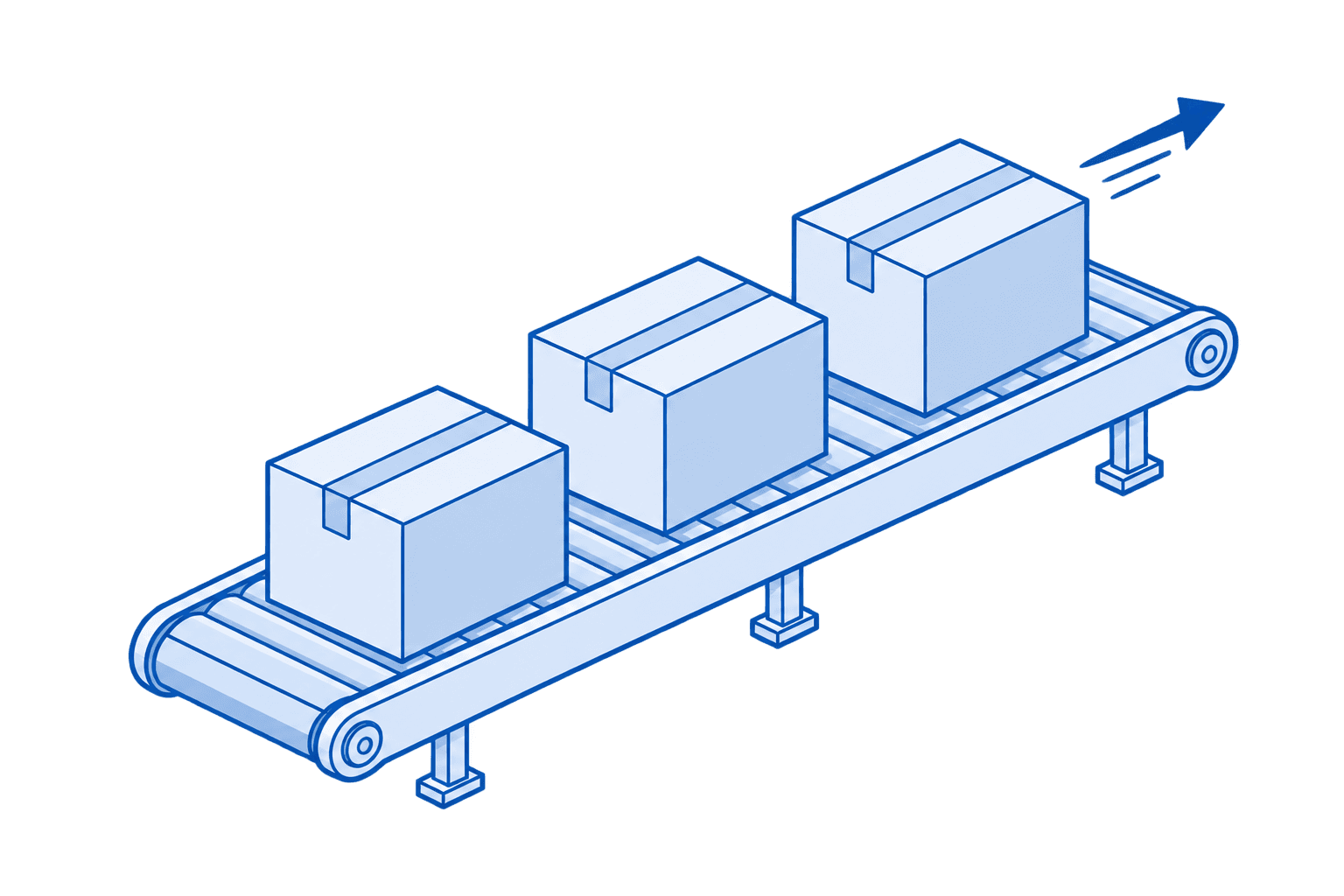

Finished cases moving on an output conveyor

Required Output

Provide the target case-handling output or upstream production speed so the solution can be matched to the packaging line.

Target output / upstream speed

FAQ

Frequently Asked Questions

Does every case handling line require robotic case packing?

No. Robotic case packing is project-specific and is not required for every case handling application. Whether it is used depends on the product, required packing arrangement, output requirements and the overall project configuration.

Can the case erector and case sealer be adjusted for different carton sizes?

Yes. The case erector and case sealer can be adjusted for different corrugated case sizes within their applicable ranges. Refer to the Technical Specifications above for the confirmed length, width and height ranges of each machine.

What tape widths are supported by the case erector and case sealer?

The case erector supports 48, 60 and 72 mm tape widths. The case sealer supports 48 and 60 mm tape widths.

Can the robotic case packing system be customized for different packing patterns?

Yes. The robotic case packing system is custom-engineered according to the product characteristics, required case packing arrangement, target output and available installation space.
